TM HIGH MAST / FLOOD LIGHTING

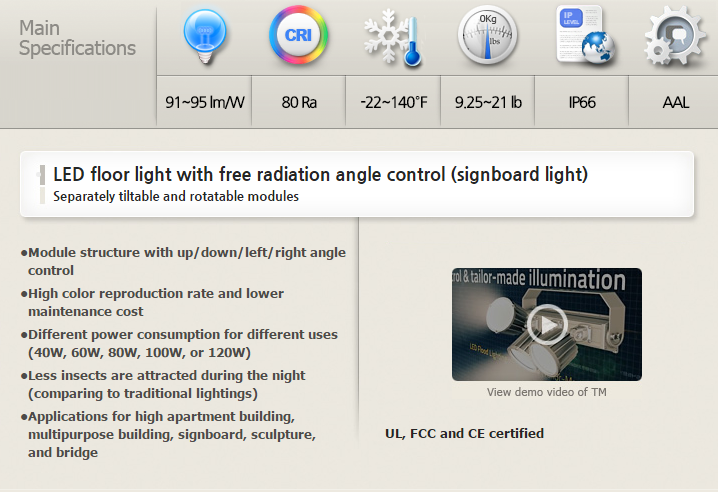

flood-lighting-area

  • LED SPECIFICATION (V.8)

    Model Name TM040 TM060 TM080
    Power Consumption 40W 60W 80W
    Colour Temperature 5000K (3000K / 4000K / 6500K available)
    Luminous Flux* 3,640 lm 5,460 lm 7,360 lm
    Luminous Efficacy* 91 lm/W 92 lm/W
    Colour Rendering 80 Ra
    Light Distribution 30° (Straight Position)
    Input Voltage AC100 ~ 240V / AC100 ~ 277V
    Frequency 50 ~ 60 Hz
    Size (W x L x H) 14.9 x 13.0 x 4.5 (inch) / 377.2 x 330.6 x 113.8 (mm) 16.8 x 13.0 x 4.5 (inch) / 426.2 x 330.6 x 113.8 (mm) 23.9 x 13.0 x 4.5 (inch) /607.2 x 330.6 x 113.8 (mm)
    Weight (Driver included) 9.25 lb / 4.2 Kg 9.92 lb / 4.5 Kg 13.2 lb / 6.0 Kg
    Body Cast Aluminum
    Optic Silver Coating Reflector
    Cover Tempered Glass 3.0T (Clear)
    Finish Powder Coating
    IP Rating IP66
    Mounting Option Swivel Bracket / Surface Mount
    Operating Temperature -22°F ~ 140°F / -30°C ~ 60°C
    Control System Wired (1-10V)
    Warranty 5 Years (12 hours usage per a day)
    *Tolerance ±5%

    Model Name TM100 TM120
    Power Consumption 100W 120W
    Luminous Flux* 9,400 lm 11,400 lm
    Luminous Efficacy* 94 lm/W 95 lm/W
    Correlated Color Temperature 5000K (3000K / 4000K / 6500K available)
    Color Rendering Index 80 Ra
    Light Distribution 30° (Straight Position)
    Input Voltage AC100 ~ 240V / AC100 ~ 277V
    Frequency 50 ~ 60 Hz
    Size (W x L x H) 30.9 x 13.0 x 4.5 (inch) / 786.2 x 330.6 x 113.8 (mm) 37.0 x 13.0 x 4.5 (inch) / 939.2 x 330.6 x 113.8 (mm)
    Weight (Driver included) 14.3 lb / 6.5 Kg 20.9 lb / 9.5 Kg
    Body Cast Aluminum
    Optic Silver Coating Reflector
    Cover Tempered Glass 3.0T (Clear)
    Finish Powder Coating
    IP Rating IP66
    Mounting Option Swivel Bracket/Surface Mount
    Operating Temperature -22°F ~ 140°F / -30°C ~ 60°C
    Control System Wired (1-10V)
    Warranty 5 Years (12 hours usage per day)
    *Tolerance ±5%

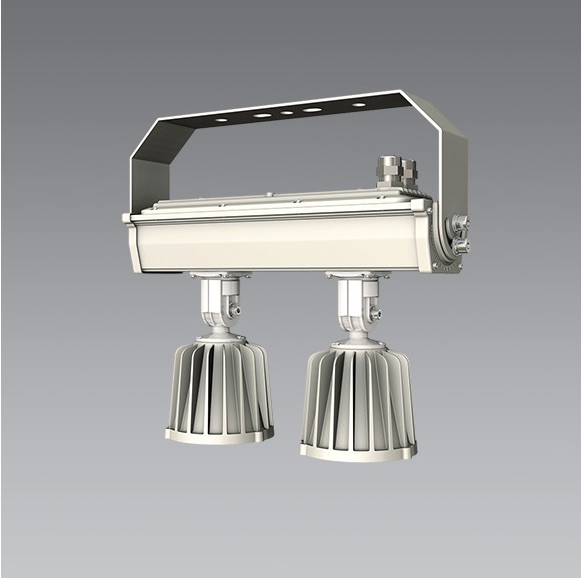

  • TM040

    area-flood-lighting

    TM060

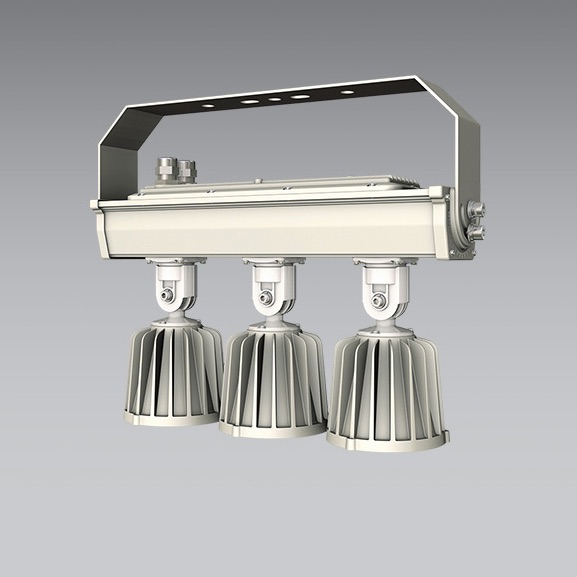

    T2

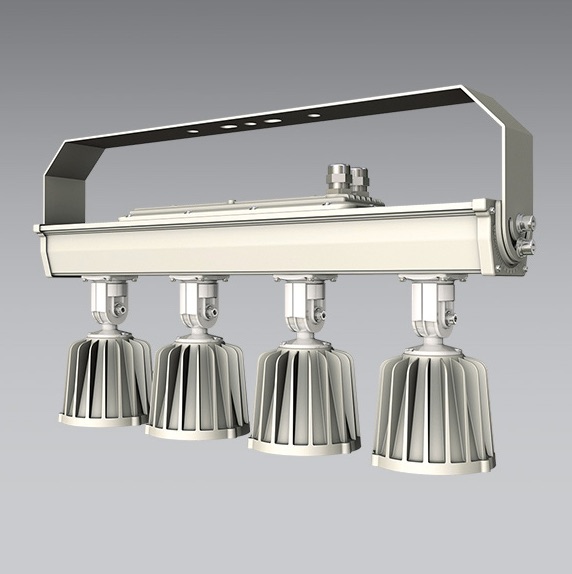

    TM080

    ENVIROLIGHT-flood-lighting

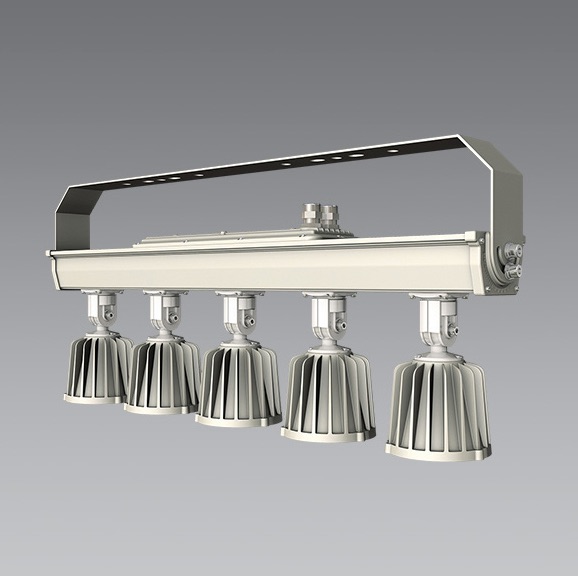

    TM0100

    TTT

    TM0120

    TTT

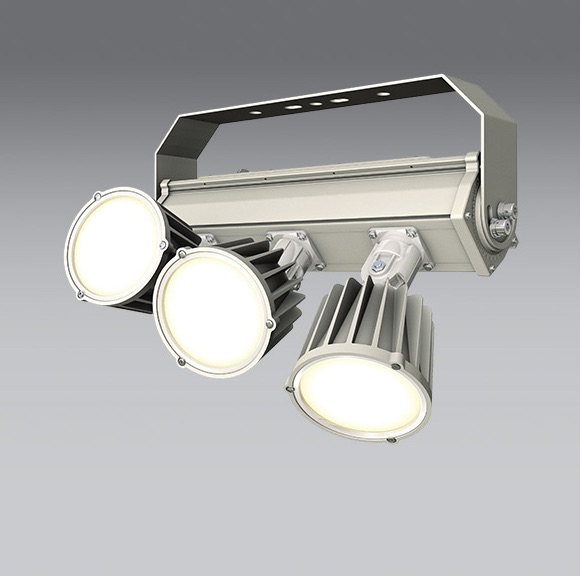

    TILTING

    T6-flood-lighting

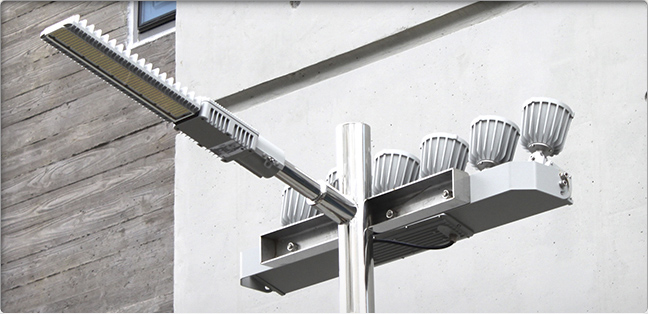

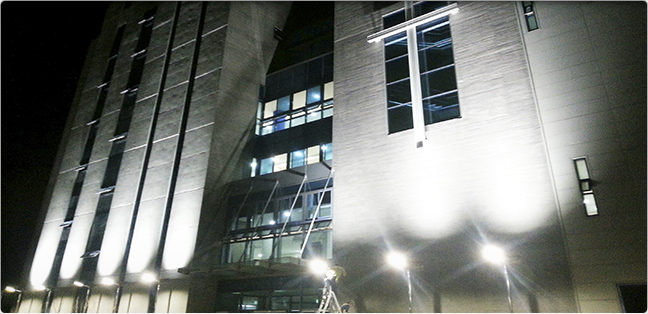

  • tm_app1

    tm_app-flood-lighting
