SPES SECURITY LIGHTING

spes-security-lights

  • LED LIGHTING SPECIFICATION

    Model Name SPES070
    Power Consumption 70W
    Luminous Efficacy* 100 lm/W
    Luminous Flux* 7,000 lm
    Correlated Color Temperature 5000K
    Color Rendering Index 80 Ra
    Input Voltage AC 100 – 240V / AC 100 – 277V
    Frequency 50 / 60 Hz
    Operation Temperature -22°F ~ 140°F / -30°C ~ 60°C
    Light Distribution Type V
    Size (L x W x H) 24.6 x 4.1 x 3.4 (inch) / 627 x 105 x 86 (mm)
    Weight (Power Box Excluded) 5.5 lb / 2.5 Kg
    Body Cast Aluminum
    Cover Polycarbonate (Clear)
    Finish Powder Coating
    IP Rating IP66
    Mounting Option Horizontal Tenon Mount
    Mount Hole Ø2.4 in Pipe Applied / Ø60.5 mm Pipe Applied
    Warranty 5 Years (LED, Driver : 12 hours usage per day) / 2 Years (CAMERA, WiFi)
    *Tolerance ±5%

    IP CAMERA SPECIFICATION

    Image Sensor 1 / 2.8″ Sony CMOS Sensor
    Maximum Resolution 1920 x 1080p
    Lens Optical 5X Mega Pixel Zoom Lens
    Min. Illumination Color: 0.7 lux (F1.2, 30IRE)-TBD
    B/W: 0.08 lux
    (F1.2, Slow Shutter ON, 30IRE)-TBD
    Image Compression H.264 – Main Profile
    MJPEG – Image quality: 5 Steps (Lowest, Low, Medium, High, Highest)
    Input Power PoE Power Supply. 802.3af Class 2, 48V@100mA
    Protocol IPv4/6, HTTP, HTTPS, SMTP, UPnP, DNS, DynamicDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP
    Web Browser Internet Explorer 7.0 or Above, Firefox, Chrome, PDA / Smart Phone
    Security Password Protection, HTTPS, IP Addressing Filtering
    PTR Pan : ±30° / Tilt : -10° ~ ±50° / Rotation : ±45°
    FOV Vertical : Wide 37.4° / Tele 7.94°
    Horizontal : Wide 49.2° / Tele 10.52°
    Diagonal : Wide 60.26° / Tele 13.08°

    WIFI ACCESS POINT SPECIFICATIONS

    Frequency Bandwidth 2.4 ~ 2.484 GHz
    RF Output Power 18dBm (Max)
    Input Power PoE Power supply. 802.3af Class 2, 48V@150mA
    Interface LAN 1 port: Fast Ethernet 10/100Mb
    Transfer standard IEEE 802.11 b/g/n
    Security WEP Encryption 64/128bit, WPA Personal (WPA-PSK using TKIP or AES)
    802.1x Authenticator , Hide SSID in beacons
    Multiple SSID with 802.1q VLAN Tagging (up to 4 SSID) in AP Mode,
    MAC Filter, WLAN L2 isolation, Wireless STA (client), Connected List,
    Firewall (DoS attack, URL Filter)
    Operation Modes Access Point / WDS / Universal Repeater
    QoS WMM
    LAN/WAN DHCP Server, DHCP Client / Static IP

    ANTENNA SPECIFICATION

    Freguency Band 2.4 ~ 2.5 GHz
    Type Waterproof Dipole Antenna
    Gain 4 dBi
    VSWR less 2.0
    Connector SMA Male
  • [row_fluid] [span4]

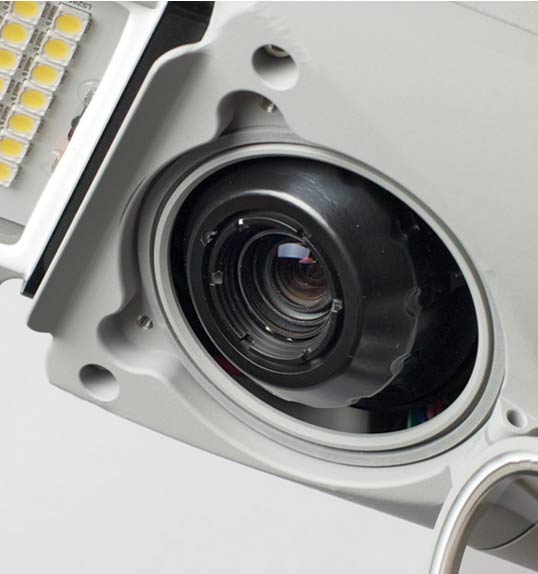

    IP CAMERA: 2M PIXEL IP CAMERA

    security-lights

    [/span4] [span4]

    IP CAMERA: OPEN & TILT

    FE-01

    [/span4] [span4]

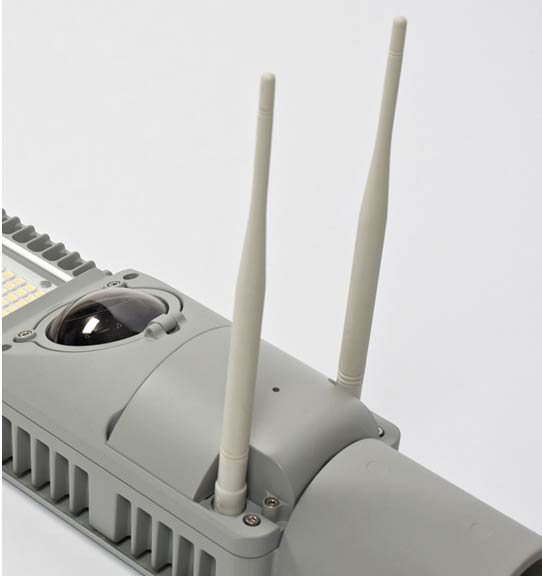

    WI-FI ANTENNA

    LED-security-lights

    [/span4] [/row_fluid] [row_fluid] [span4]

    INTEGRATED DRIVER

    SPES-01

    [/span4] [span4]



    3-01

    [/span4] [span4]



    4-01

    [/span4] [/row_fluid]

  •

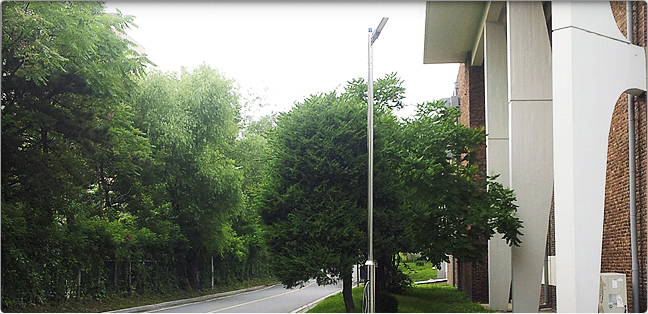

    JULY 2013: SEOUL NATIONAL UNIVERSITY OF SCIENCE & TECHNOLOGY

    security-lightsapp1

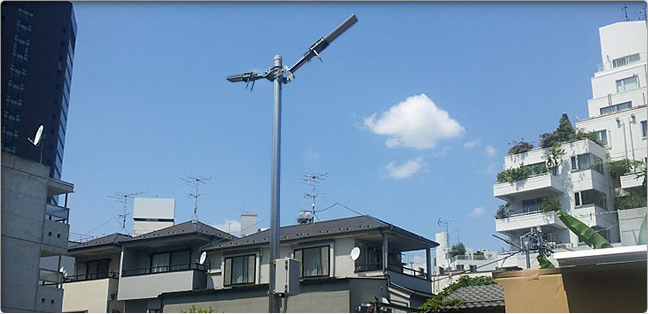

    JULY 2012: AMANO/JAPAN

    spes-security-lightING
