SEGA HIGH BAY LIGHTING

high bay lighting; sega high bay lights; industrial LED lighting

  • Model Name SE080 SE100 SE130 SE160
    Power Consumption 80W 100W 130W 160W
    Luminous Efficacy* 145 lm/W
    Luminous Flux* 11,600 lm 14,500 lm 18,850 lm 23,200 lm
    Color Temperature 5000K (3000K / 4000K / 5700K / 6500K available)
    Color Rendering 80 Ra
    Input Voltage AC100 ~ 240V / AC100 ~ 277V / AC347 ~ 480V
    Frequency 50 ~ 60Hz
    Operation Temperature -22°F ~ 140°F / -30°C ~ 60°C
    Light Distribution 80° / 100° (*SE080) / 110°(*SE100) 90° / 130°
    Size (D X H) Ø12.4 x 5.8 (inch) / Ø315 x 147 (mm) Ø16.5 x 7.1 (inch) / Ø420 x 180 (mm)
    Weight (Driver included) 9.7 lb / 4.4 Kg 13.2 lb / 6.0 Kg
    Body Cast Aluminum
    Optic Silver Coating Reflector
    Cover Tempered Glass 3.2T (Clear / Frosted)
    Finish Coating Powder Coating
    IP Rating IP65
    Mounting Option Ceiling Bracket (Chain / Pipe)
    Control System Wireless (ZigBee) / Wired (1-10V) / Sensor (Daylight)
    Warranty 5 Years (12 hours usage per day)
    *Tolerance ±5%

  • SE 130/160 TOP VIEW

    high bay lighting; sega high bay lights

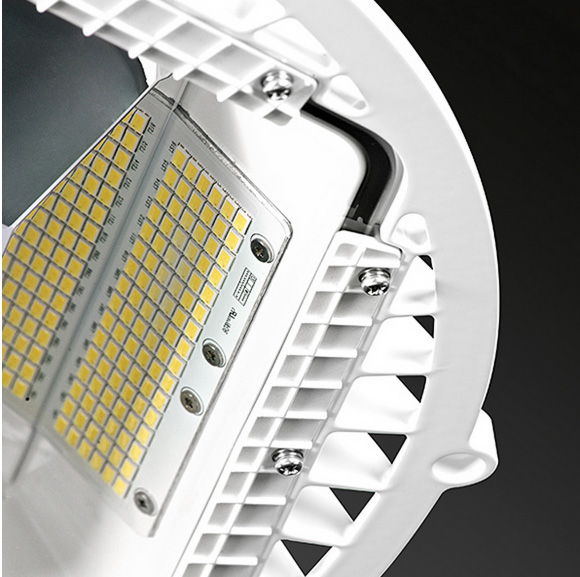

    LED

    high bay lighting; sega high bay lights

    SE130/160 TOP VIEW

    high bay lighting; sega high bay lights

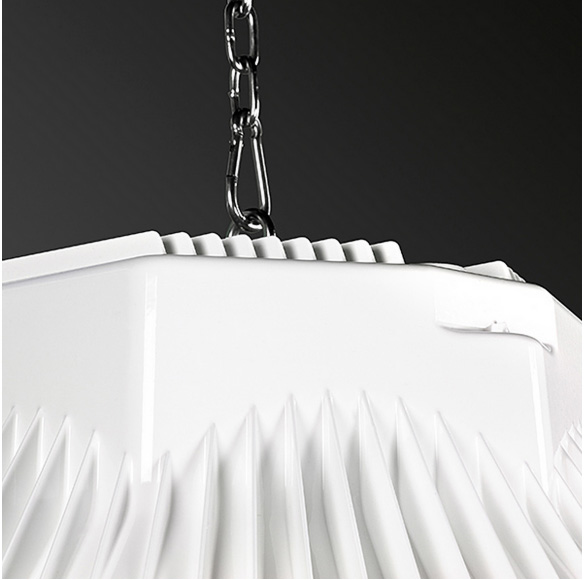

    CHAIN

    high bay lighting; sega high bay lights

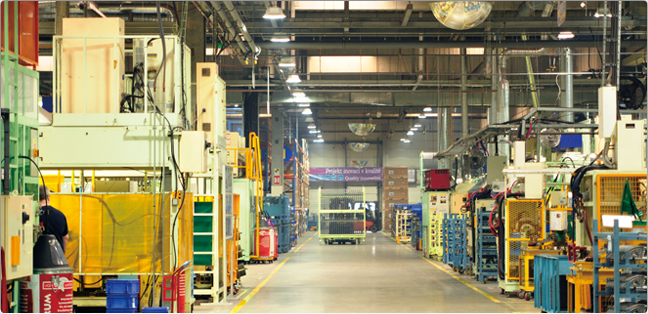

  • FEBRUARY 2014: FACTORY, CZECH

    high bay lighting; sega high bay lights application

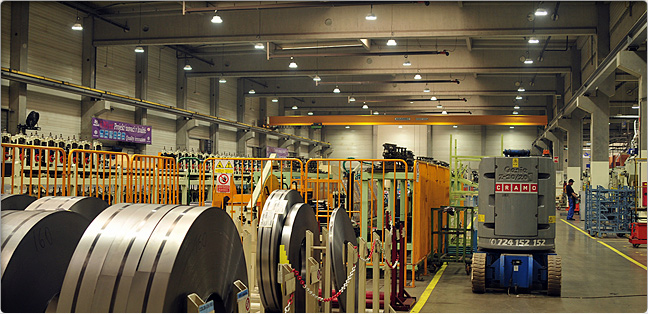

    FEBRUARY 2014: FACTORY, CZECH

    high bay lighting; sega high bay lights application
