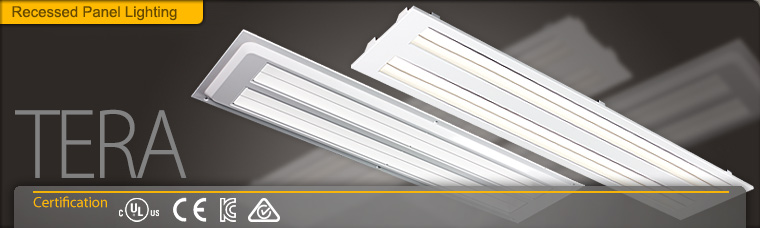

TERA PANEL LIGHT

led panel light; TERA panel lighting

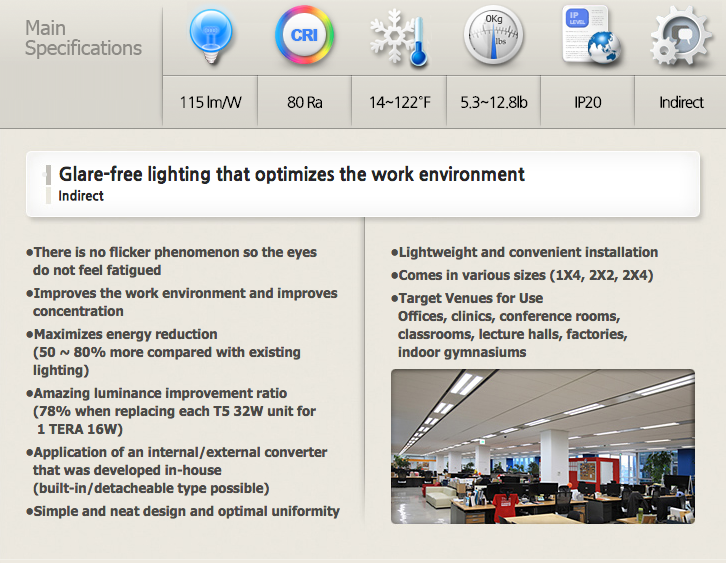

  • TERA features

  • Model Name TERO16-14 TERO22-14 TERO32-14 TERO32-22
    Power Consumption 16W 22W 32W
    Luminous Efficacy* 115 lm/W 110 lm/w 115 lm/W
    Luminous Flux* 1,800 lm 2,530 lm 3,520 lm 3,680 lm
    Color Temperature 5000K (3000K / 4000K / 5700K available)
    Color Rendering 80 Ra
    Size (W X L X H) T-Bar 140 : 11.8 x 47.6 x 2.1 (inch)
    M-Bar 141 : 12.6 x 50.4 x 2.1 (inch)
    T-Bar 142 : 11.7 x 47.1 x 2.1 (inch)
    T-Bar 143 : 11.7 x 47.5 x 2.1 (inch)
    T-Bar 220 : 23.6 x 23.6 x 2.1 (inch)
    M-Bar 221 : 24.4 x 24.4 x 2.1 (inch)
    T-Bar 222 : 23.5 x 23.5 x 2.1 (inch)
    T-Bar 223 : 24.5 x 24.5 x 2.1 (inch)
    M-Bar 224 : 26.0 x 26.0 x 2.1 (inch)
    Driver Type Built-in Built-in / External External
    Input Voltage AC100 ~ 240V / AC100 ~ 277V / AC220 ~ 240V / AC200 ~ 277V
    Operating Temperature 14°F ~ 122°F / -10°C ~ 50°C
    Weight (Driver Included) 5.5 lb / 2.5 Kg 4.9 lb / 2.2 Kg 5.3 lb / 2.4 Kg 7.7 lb / 3.5 Kg
    Body Steel
    Cover Polycarbonate 1.0T
    IP Rating IP20
    Mounting Option Recessed
    Control System Wired (1-10V)
    Warranty 3 Years (12 hours usage per day)
    *Tolerance ±5%



    Model Name TERO34-22 TERO36-22 TERO45-22 TERO40-24
    Power Consumption 34W 36W 45W 40W
    Luminous Efficacy* 110 lm/W 112 lm/W 115 lm/W 110 lm/W
    Luminous Flux* 3,400 lm 4,032 lm 5,175 lm 4,400 lm
    Color Temperature 5000K (3000K, 4000K, 5700K available)
    Color Rendering 80 Ra
    Driver Type External
    Input Voltage AC100 ~ 240V / AC100 ~ 277V / AC220 ~ 240V / AC200 ~ 277V
    Operating Temperature 14°F ~ 122°F / -10°C ~ 50°C
    Weight (Driver Included) 7.7 lb / 3.5 Kg 12.8 lb / 5.8 Kg
    Body Steel
    Cover Polycarbonate 1.0T
    IP Rating IP20
    Mounting Option Recessed
    Control System Wired (1-10V)
    Warranty 3 Years (12 hours usage per day)
    *Tolerance ±5%
  • led panel light; TERA panel lighting

    led panel light; TERA panel lighting

    led panel light; TERA panel lighting

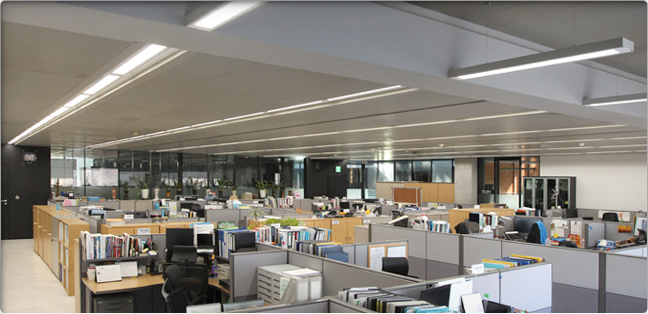

  • RECOMMENDED PLACES: OFFICE

    led panel light; TERA panel lighting application

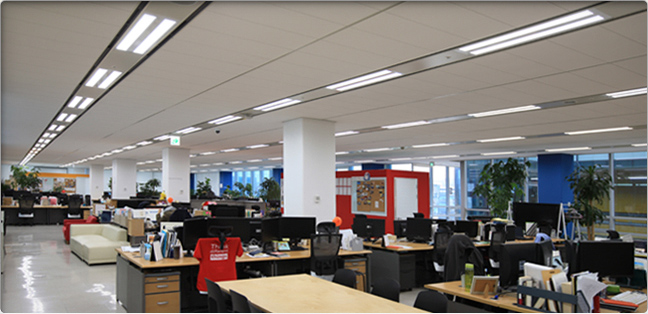

    RECOMMENDED PLACES: OFFICE

    led panel light; TERA panel lighting

    RECOMMENDED PLACES: OFFICE

    led panel light; TERA panel lighting
