NM AREA LIGHTING

NM area light, area lighting, LED area lighting, parking lot lighting, pathway lighting, area lighting johannesburg, area lighting south africa

  • Model Name NM050 NM070 NM100 NM130
    Power Consumption 50W 70W 100W 130W
    Luminous Efficacy* 105 lm/w
    Luminous Flux* 5,250 lm 7,350 lm 10,500 lm 13,650 lm
    Color Temperature 5000K (4000K / 5700K available)
    Color Rendering 80 Ra
    Light Distribution 150°
    Input Voltage AC 100 ~ 240V / AC 100 ~ 277V
    Operation Temperature -22°F ~ 140°F / -30°C ~ 60°C
    Size (L x W x H) None : 19.8 x 22.4 x 6.6 (inch) / 502.0 x 567.6 x 168.5 (mm)
    Photo Sensor : 19.8 x 22.4 x 8.7 (inch) / 502.0 x 567.6 x 220.6 (mm)
    Weight (Driver included) 16.1 lb / 7.3 Kg
    Body Cast Aluminum
    Optic Silver Coating Reflector
    Cover Polycarbonate 3.0T (Diffuser)
    Finish Coating Powder Coating
    IP Rating IP66
    Mounting Option Pole Mount (Post Top)
    Mount Hole Pipe Applied Ø2.88 inch / Pipe Applied Ø73.1mm
    Control System Sensor (NEMA Photo)
    Warranty 5 Years (12hrs usage per day)
    *Tolerance ±5%

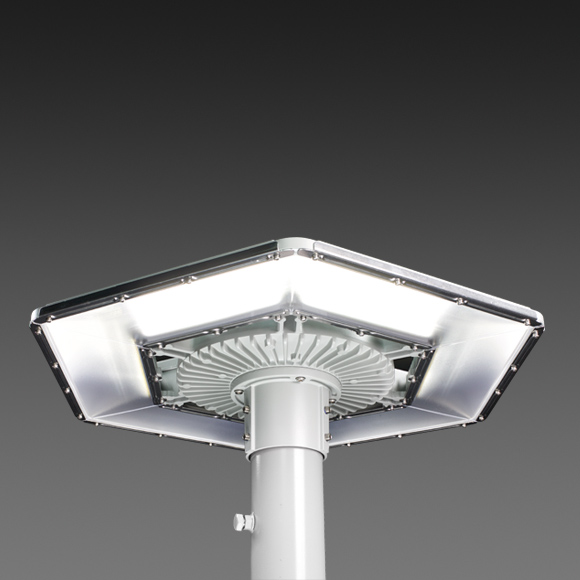

  • nm perspective view

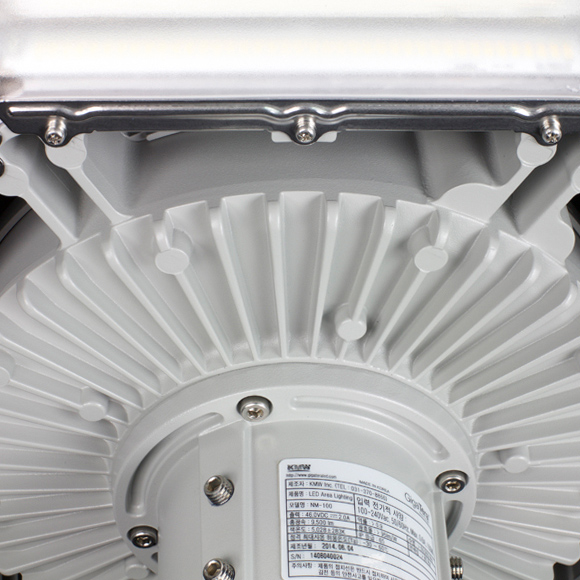

    heat sink pin





  • Recommended places : Parking Lot

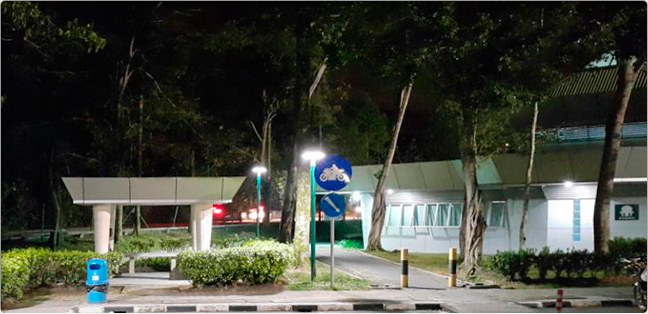

    NM application 1

    Recommended places : Parking Lot

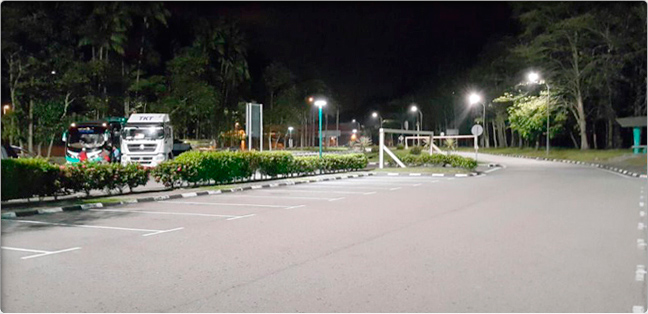

    NM application 2

    Recommended places : Campus

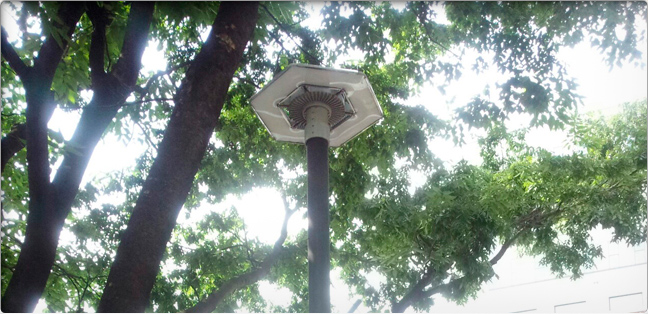

    NM application 3

    Recommended places : Roadway

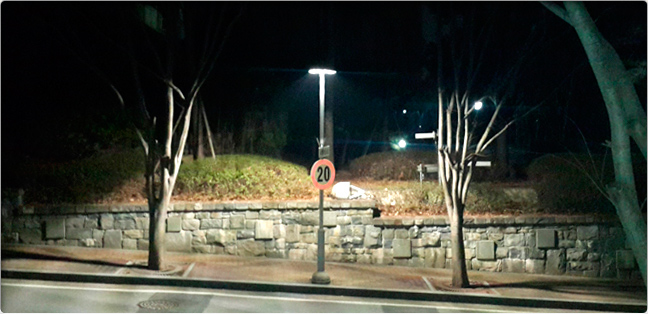

    NM application 4
