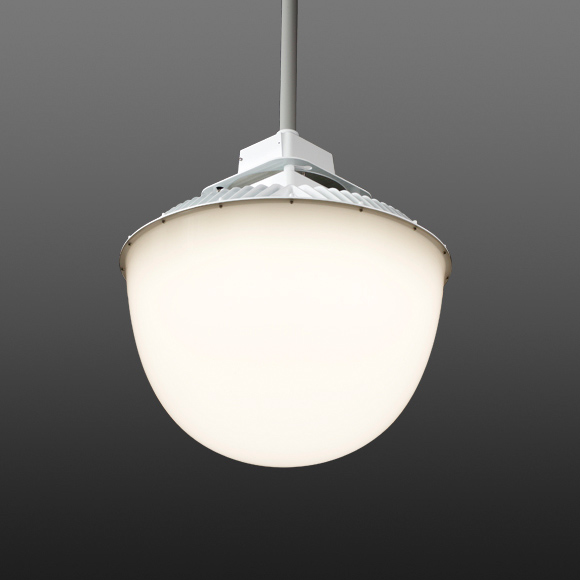

ACORN HIGH BAY LIGHTING

high bay lighting; industrial LED lighting

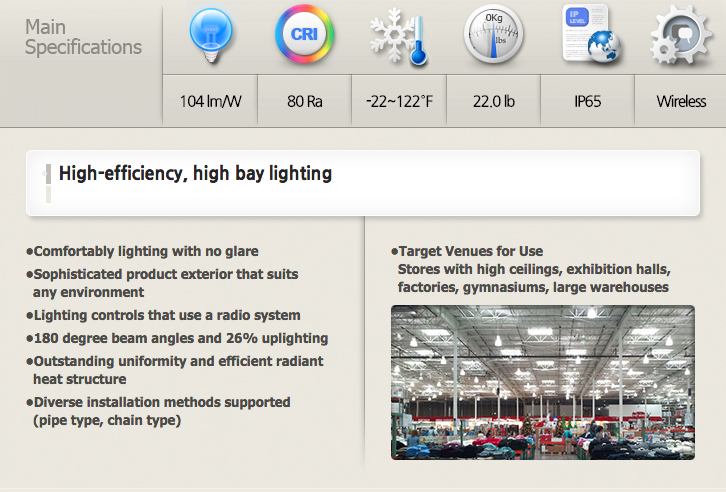

  • ACORN title

  • LED LIGHTING SPECIFICATION V1.8

    Model Name ACN180
    Power Consumption 180W
    Luminous Efficacy* 104 lm/W
    Luminous Flux* 18,720 lm
    Color Temperature 4000K (3000K / 5000K available)
    Color Rendering 80 Ra
    Input Voltage AC100 ~ 240V / AC100 ~ 277V
    Operation Temperature -22°F ~ 122°F / -30°C ~ 50°C
    Light Distribution 180° / Uplighting 26%
    Size (D x H) Pipe Type : Ø20.3 x 21.7(inch), 515.6 x 550 (mm)
    Chain Type : Ø 20.3 x 18.2 (inch), 515.6 x 463 (mm)
    Weight (Driver included) 22.0 lb / 10.0 Kg
    Body Cast Aluminum
    Cover Polycarbonate 3.0T (Diffuser)
    Finish Powder Coating
    IP Rating IP65

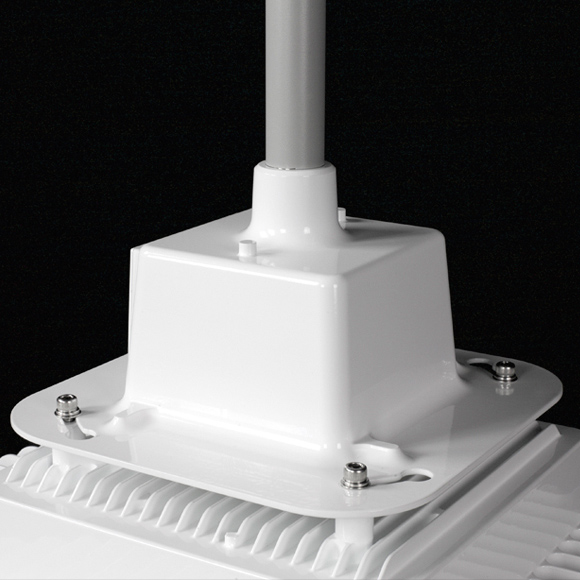

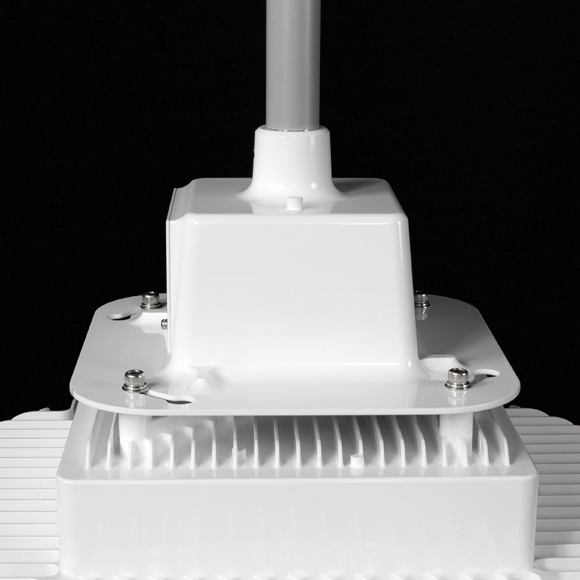

    Mounting Option Ceiling Bracket (Chain / Pipe)
    Control System Wireless (ZigBee)
    Warranty 5 Years (12 hours usage per day)
    *Tolerance ±5%
  • high bay lighting; acorn high bay

    high bay lighting; acorn high bay

    high bay lighting; acorn high bay

    high bay lighting; acorn high bay

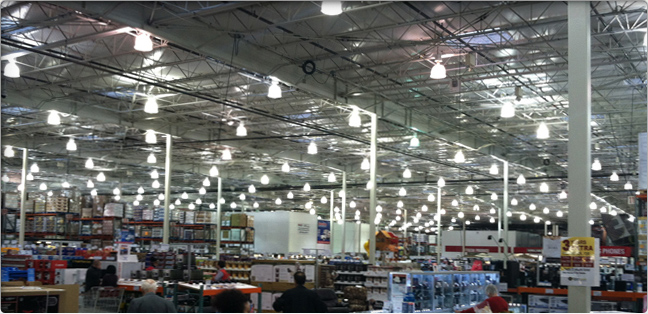

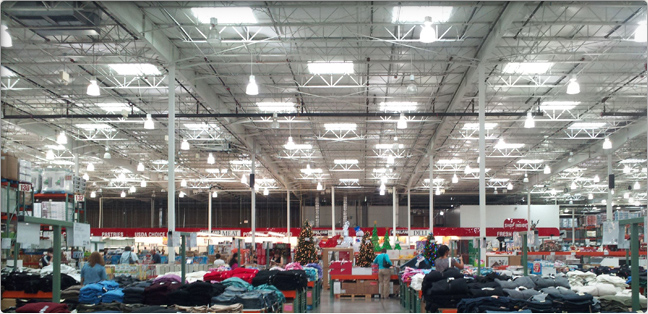

  • Stores with High Ceilings

    high bay lighting; acorn high bay; application

    Stores with High Ceilings

    high bay lighting; acorn high bay application
