SUFA-A STADIUM LIGHTS

stadium lights; sufa-a stadium lighting

  • Model Name SFA800 SFA1K0 SFA1K2
    Power Consumption 800W 1000W 1200W
    Luminous Efficacy* 100 lm/W 105 lm/W 100 / 105 / 110 lm/W
    Luminous Flux* 80,000 lm 84,000 lm 100,000 / 105,000 / 111,000 lm 120,000 / 126,000 / 132,000 lm
    Colour Rendering Index 90 Ra 80 Ra 70 / 80 / 90 Ra
    Color Temperature 5000K (3000 / 4000K / 5700K available)
    Light Distribution 15°/ 20°/ 30°/ 45°
    Input Voltage 200 ~ 277 / 220 ~ 240 / 347 ~ 480 Vac
    Operating Temperature -22°F ~ 131°F / -30°C ~ 55°C
    Size (W x L x H) 14.3 x 29.8 x 23.5 (inch) / 363 x 757 x 595.5 (mm)
    Weight (Driver Included) 39.7 lb / 18.0 Kg
    Body Cast Aluminum
    Optic Silver Coating Reflector
    Cover Tempered Glass 3.2T (Clear)
    IP Rating IP66
    Mounting Option Wall Mount
    Control System Wireless (ZigBee) / Wired (RS-485)
    Warranty 5 Years (12 hours usage per day)
    *Tolerance ±5%

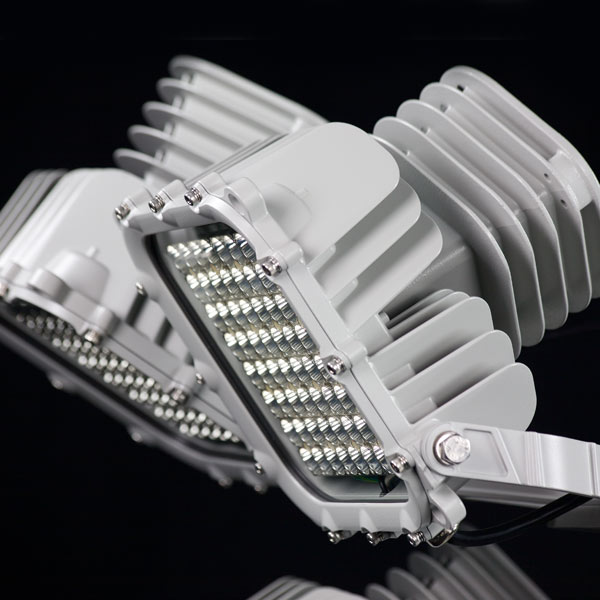

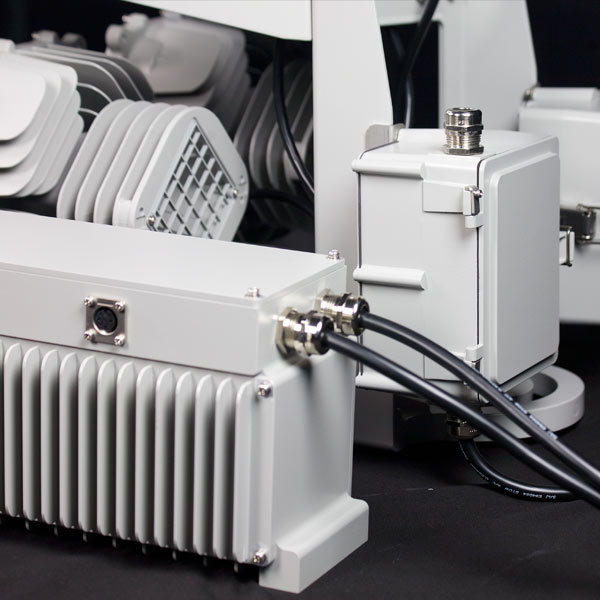

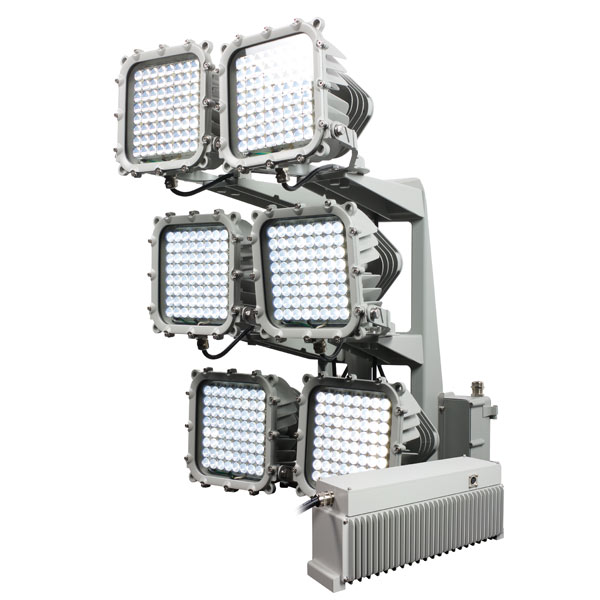

  • SUFA-A200

    stadium lights; sufa-a stadium lighting

    stadium lights; sufa-a stadium lighting

    stadium lights; sufa-a stadium lighting

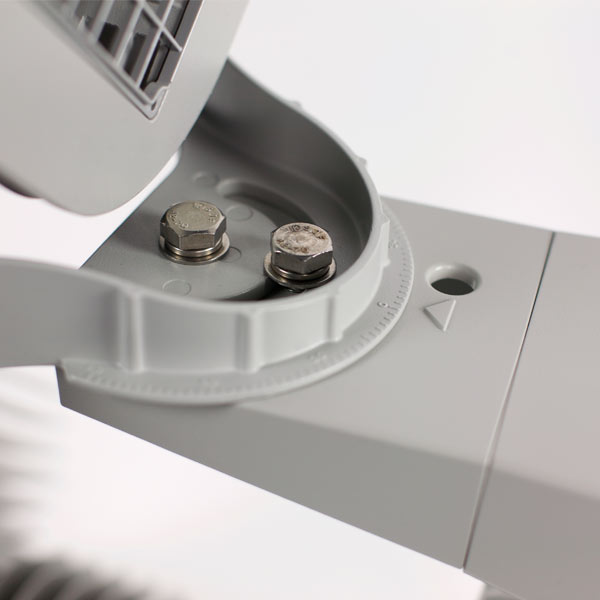

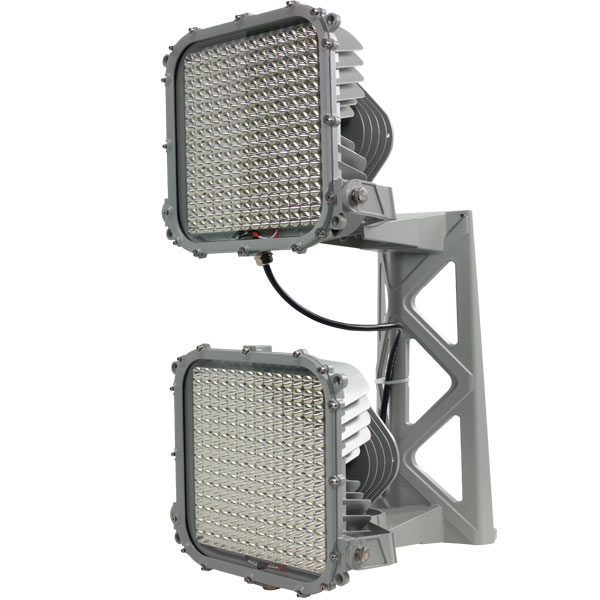

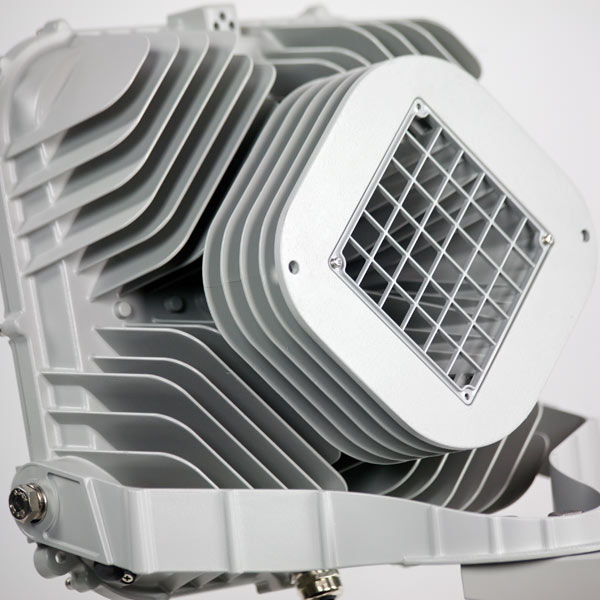

    SAFA-A500

    stadium lights; sufa-a stadium lighting

    stadium lights; sufa-a stadium lighting

    stadium lights; sufa-a stadium lighting

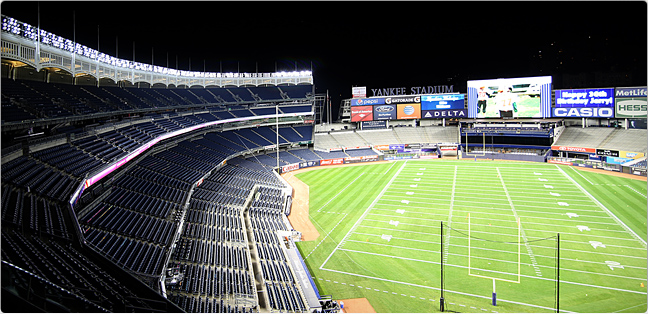

  • PILOT INSTALLATION, DERBY COUNTRY FOOTBALL CLUB

    stadium lights; sufa-a stadium lighting application

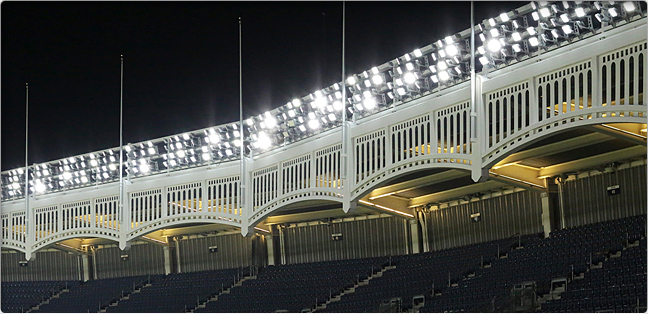

    PILOT INSTALLATION, DERBY COUNTRY FOOTBALL CLUB

    stadium lights; sufa-a stadium lighting application
