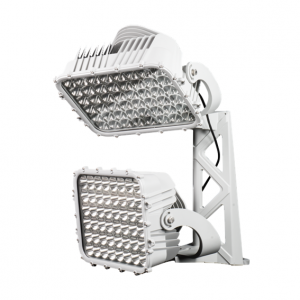

SUFA-H STADIUM LIGHTS

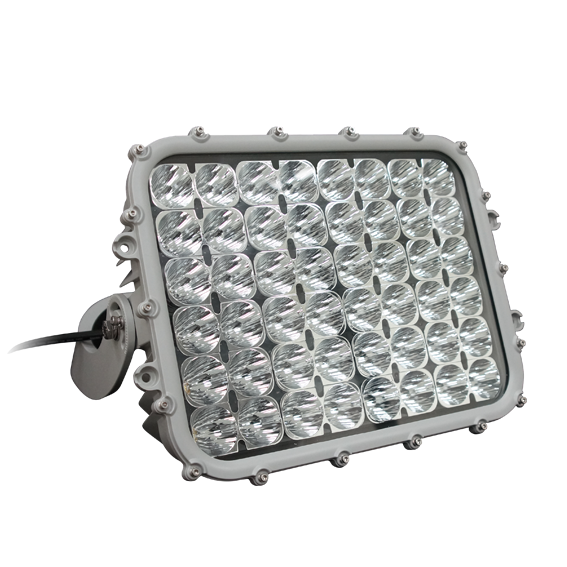

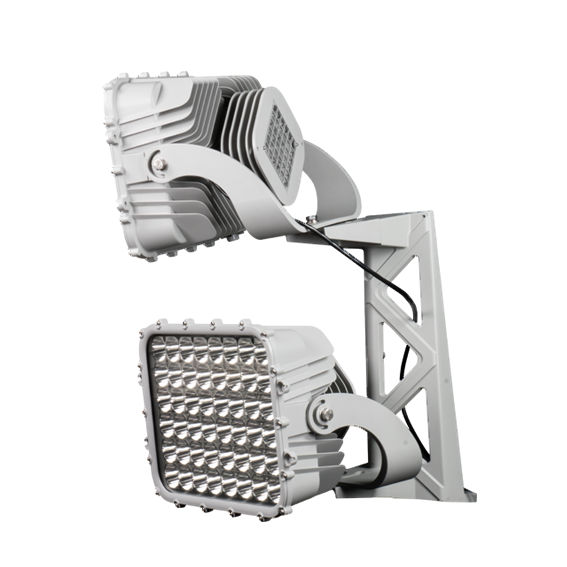

  • Model Name SFH600 SFH1K2 (300W x 4) SFH1K2 (600W x 2)
    Power Consumption 600W 1200W 1200W
    Luminous Efficacy* 95 / 100 / 105 lm/W
    Luminous Flux* 57,000 / 60,000 / 63,000 lm 114,000 / 120,000 / 126,000 lm
    Color Temperature 5000K (3000K, 4000K, 5700K available)
    Color Rendering 70 / 80 / 90 Ra
    Light Distribution 20°
    Input Voltage 200 ~ 277 / 220 ~ 240 / 347 ~ 480 Vac
    Operation Temperature -30℃ ~ 55℃
    Weight 10.2 kg / 22.5 lb 26 kg / 57.3 lb
    Body Cast Aluminum
    Finish Powder Coating
    Cover Tempered Glass 4.0T(Clear), Anti UV & Dust, Shatter Proof
    IP IP66
    Control System Wired (RS-485)
    *Tolerance: ± 5%
  •
