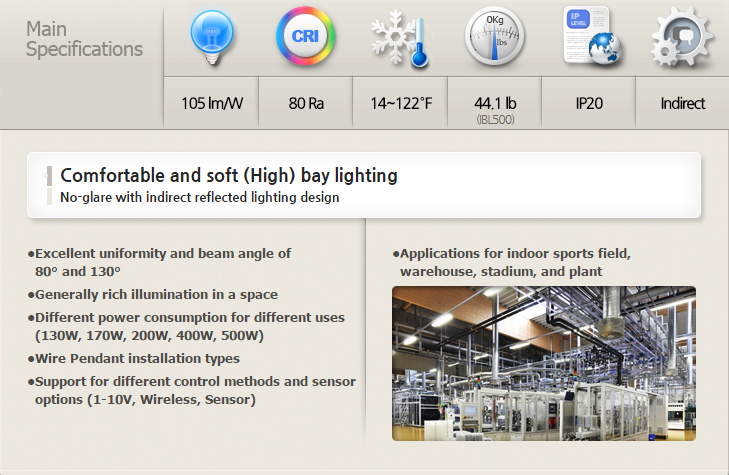

IBL HIGH BAY LIGHTING

  • Model Name IBL130 IBL170 IBL200 IBL400 IBL500
    Power Consumption 130W 170W 200W 400W 500W
    Luminous Efficacy* 105lm/w
    Luminous Flux* 13,650 lm 17,850 lm 21,000 lm 42,000 lm 52,500 lm
    Color Temperature 5000K (3000K,4000K,5700K available)
    Color Rendering 80 Ra
    Input Voltage AC100 ~ 240V / AC100 ~277V / AC347 ~ 480V
    Frequency 50 ~ 60 Hz
    Operation Temperature 14°F ~ 131°F / -10°C ~ 55°C 14°F ~ 122°F / -10°C ~ 50°C 14°F ~ 131°F / -10°C ~ 55°C 14°F ~ 131°F / -10°C ~ 50°C
    Size (L x W x H) 46.5 x 14.7 x 4.5 (inch) / 1180 x 372 x 113 (mm) 59.1 x 14.7 x 4.5 (inch) / 1500 x 372 x 113 (mm) 46.5 x 22.5 x 4.5 (inch) / 1180 x 572 x 113 (mm) 46.5 x 46.1 x 4.5 (inch) / 1180 x 1172 x 113 (mm) 59.1 x 46.1 x 4.5 (inch) / 1500 x 1172 x 113 (mm)
    Weight (Driver Included) 15.2 lb / 6.9 Kg 18.1 lb / 8.2 Kg 21.6 lb / 9.8 Kg 36.6 lb / 16.6 Kg 44.1 lb / 20.0 Kg
    Body Extrude Aluminum
    Optic White Reflector
    Cover Polycarbonate (Clear)
    Finish Anodized
    IP Rating IP20
    Mounting Option Wire Pendant
    Control System Wireless (ZigBee) / Wired (1-10V) / Sensor (Occupancy, Daylight)
    Warranty 5 Years (12 hours usage per day)
    *Tolerance ±5%
  • high bay lighting; IBL high bays

    high bay lighting; IBL high bays

    high bay lighting; IBL high bays

    high bay lighting; IBL high bays

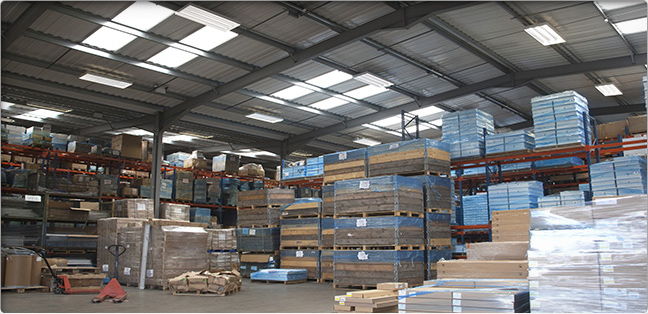

  • RECOMMENDED PLACES: WAREHOUSE

    high bay lighting; IBL high bays application

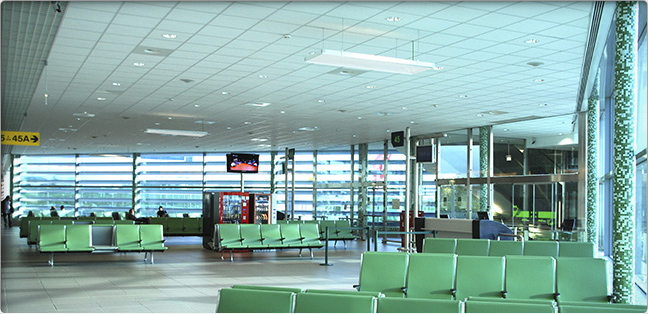

    RECOMMENDED PLACES: AIRPORT

    high bay lighting; IBL high bays application
