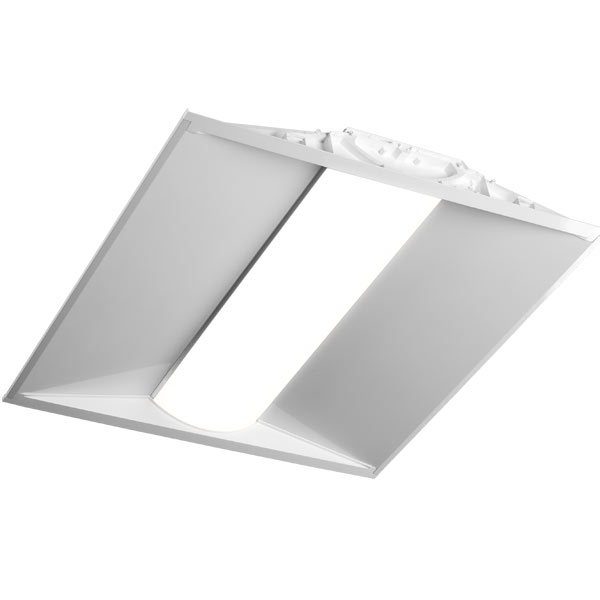

TOPA PANEL LIGHT

  • Topa Features

  • Model Name TOP034-22T TOP040-24
    Power Consumption 34W 40W
    Luminous Efficacy* 105 lm/W 115 lm/W
    Luminous Flux* 3,570 lm 4,600 lm
    Color Temperature 5000K (3000K / 4000K / 5700K available)
    Color Rendering 80 Ra
    Light Distribution 120°
    Input Voltage AC100 - 240V / AC100 - 277V
    Frequency 50 ~ 60 Hz
    Operating Temperature 14°F ~ 122°F / -10°C ~ 50°C
    Size (L x W x H) 23.6 x 23.5 x 3.9 (inch) / 600 x 596 x 99 (mm) 47.6 x 23.5 x 3.9 (inch) / 1210 x 596 x 99 (mm)
    Weight (Driver included) 6.9 lb / 3.2 Kg 11.7 lb / 5.3 Kg
    Body Steel
    Cover Polycarbonate (Diffuser)
    IP Rating IP20
    Mounting Option Recessed
    Control System Wired (1-10V)
    Warranty 3 Years (12 hours usage per day)
    *Tolerance ±5%
  • led panel light; TOPA panel light

    led panel light; TOPA panel light

    led panel light; TOPA panel light

    led panel light; TOPA panel light

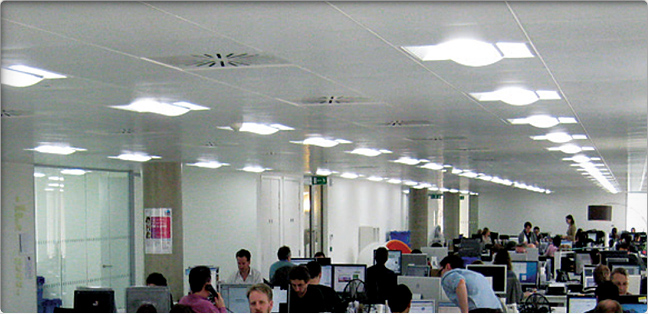

  • OFFICE BUSINESSES

    led panel light; TOPA panel light
