VERONA LED PANEL LIGHT

led panel light

  • Model Name T-Bar : VR140-40
    M-Bar : VR141-40
    T-Bar : VR140-50
    M-Bar : VR141-50
    T-Bar : VR140-60
    M-Bar : VR141-60
    Power Consumption 40W 50W 60W
    Luminous Efficacy* 100 lm/w
    Luminous Flux* 4,000 lm 5,000 lm 6,000 lm
    Color Temperature 5000K (3000K / 3500K / 4000K / 5700K available)
    Color Rendering 80 Ra
    Input Voltage AC 100 ~ 240V / AC 100 ~ 277V
    Frequency 50 ~ 60 Hz
    Operating Temperature 14°F ~ 122°F / -10°C ~ 50°C
    Size (W X L X H) T-Bar : 47.6 x 11.8 x 3.6 (inch) / 1,210 x 300 x 92.4 (mm)
    M-Bar : 50.4 x 12.6 x 3.5 (inch) / 1,280 x 320 x 89.6 (mm)
    Weight (Driver included) 7.9 lb / 3.6 Kg
    Body Polycarbonate, ABS
    Cover Polycarbonate (Diffuser)
    IP Rating IP20
    Mounting Option Recessed
    Control System Wired (1-10V,IR) / Wireless (Remote Control)
    Warranty 3 Years (12 hours usage per day)
    *Tolerance ±5%

    PRODUCT DIMENSION

    varon-spec

  • M BAR TYPE

    led panel light

    led panel light

    led panel light

    T BAR TYPE

    led panel light

    led panel light

    led panel light

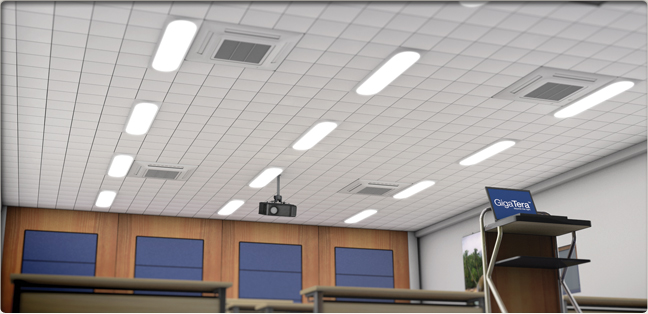

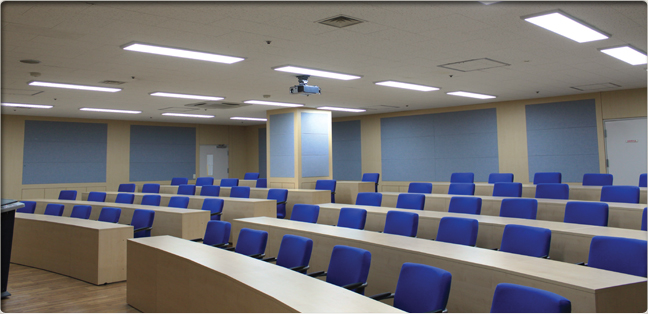

  • SEMINAR ROOM

    led panel lightled panel light
