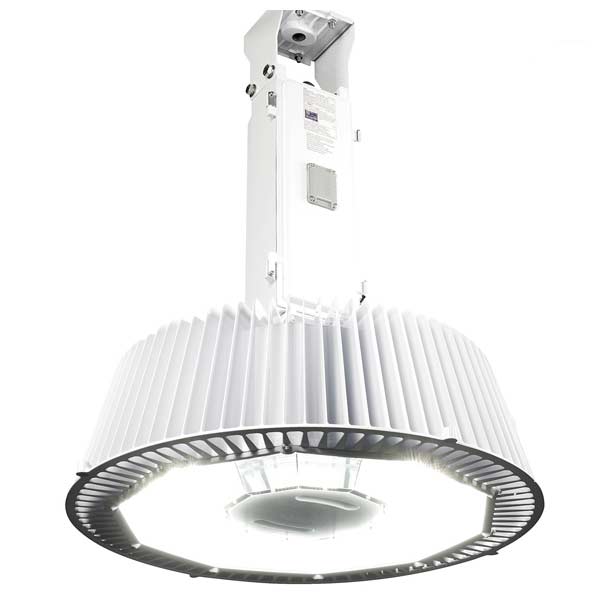

SEGA-H HIGH BAY LIGHTING

high bay lighting; sega-h high bay lights; industrial LED lighting

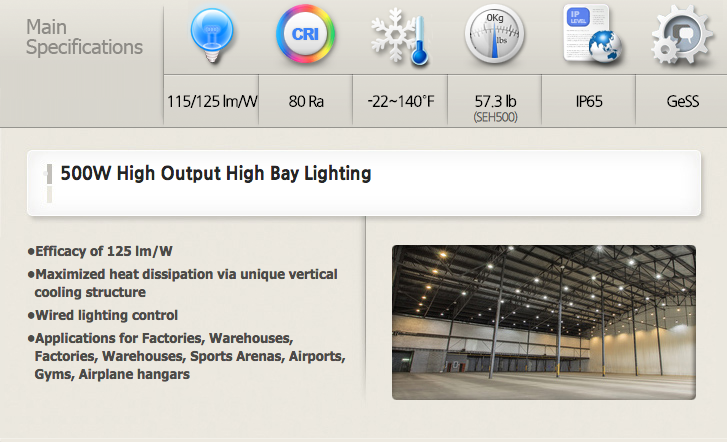

  • sega h features

  • Model Name SEH400 SEH500
    Power Consumption 400W 500W
    Cover Glass Type Clear Frosted Clear Frosted
    Luminous Efficacy* 125 lm/W 115 lm/W 125 lm/W 115 lm/W
    Luminous Flux* 50,000 lm 46,000 lm 62,500 lm 57,500 lm
    Color Temperature 5000K (4000K available)
    Color Rendering 80 Ra
    Input Voltage AC1200 - 277V AC1347 - 480V AC1200 - 277V AC1347 - 480V
    Frequency 50 ~ 60Hz
    Operation Temperature -22°F ~ 140°F / -30°C ~ 60°C
    Light Distribution 70°
    Size (D x H) Ø18.9 x 33.4 (inch) / Ø480 x 847 (mm) Ø24.4 x 39.9 (inch) / Ø620 x 860 (mm)
    Weight (Driver included) 41.1 lb / 20.0 Kg 57.3 lb / 26.0 Kg

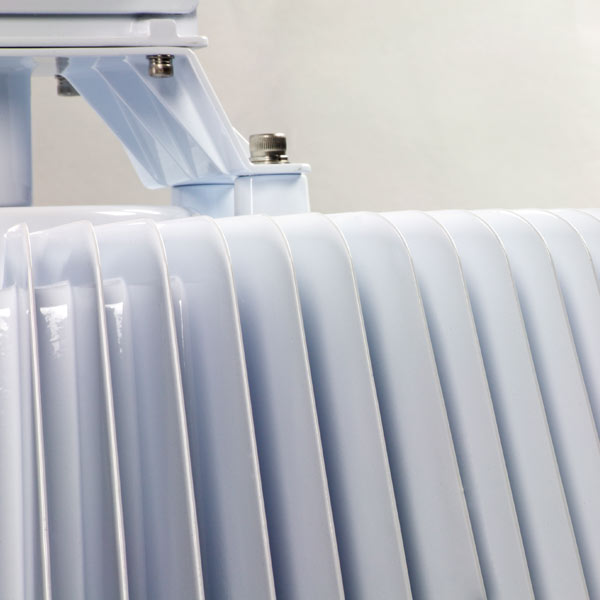

    Body Cast Aluminum
    Cover Tempered Glass 4.0T (Clear / Frosted)
    Finish Coating Powder Coating
    IP Rating IP65

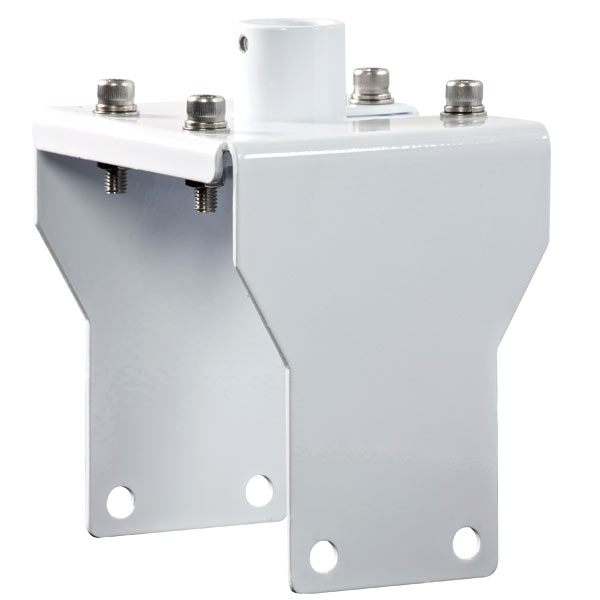

    Mounting Option Ceiling Bracket (Pipe)
    Control System Wireless (ZigBee) / Wired (1-10V)
    Warranty 5 Years (12 hours usage per day)
    *Tolerance ±5%

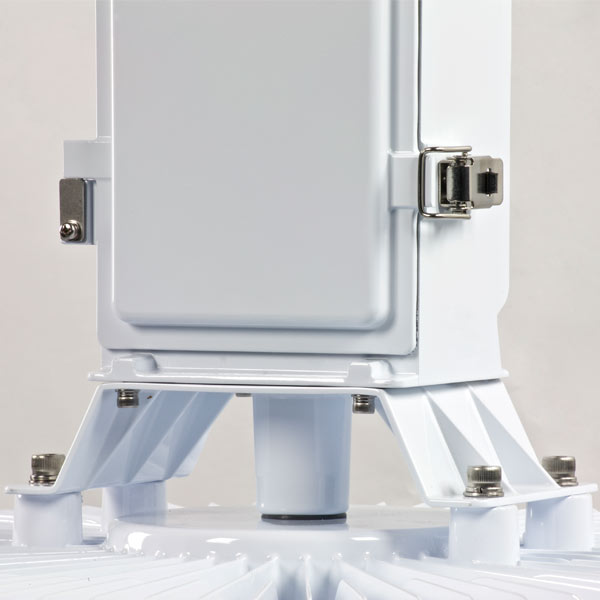

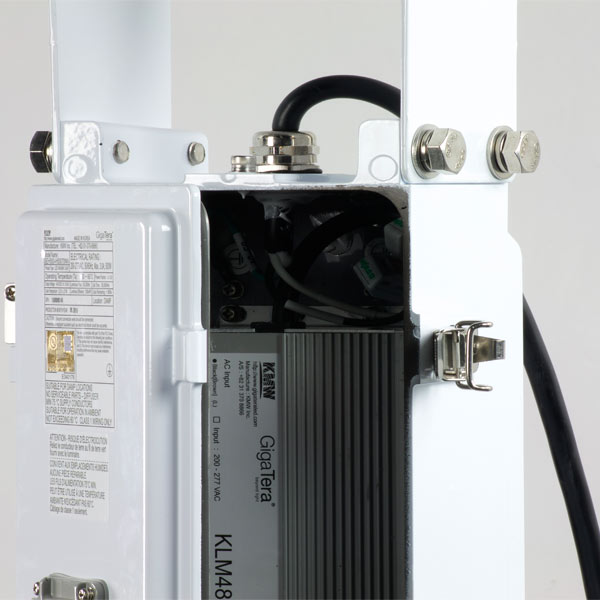

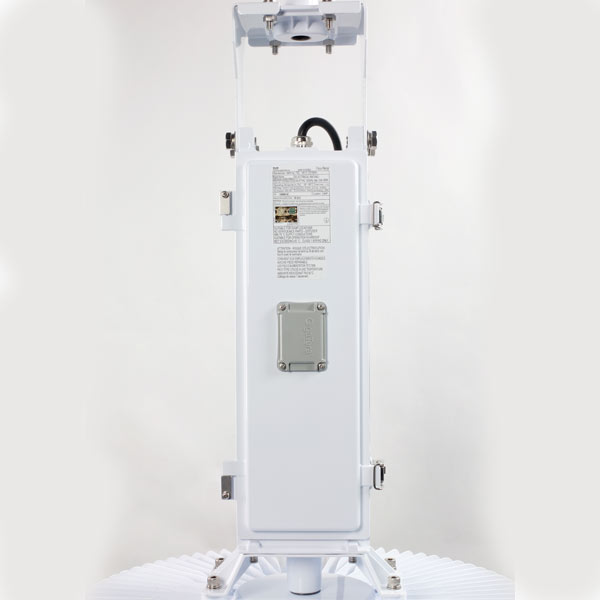

  • high bay lighting; sega-h high bay lights

    high bay lighting; sega-h high bay lights

    high bay lighting; sega-h high bay lights

    high bay lighting; sega-h high bay lights

    high bay lighting; sega-h high bay lights

    high bay lighting; sega-h high bay lights

    high bay lighting; sega-h high bay lights

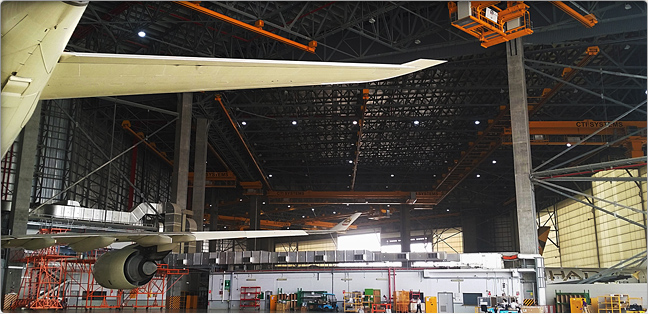

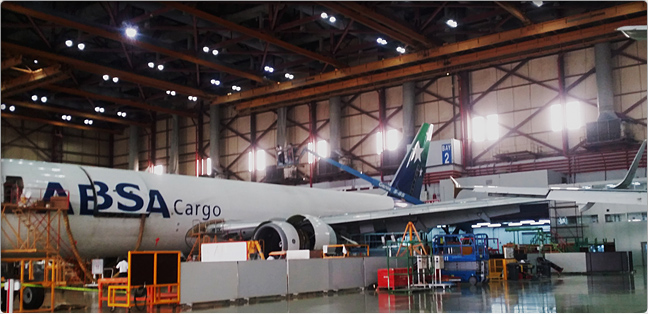

  • APPLICATION: ETIHAD AIRCRAFT HANGAR

    high bay lighting; sega-h high bay lights; application

    APPLICATION: ETIHAD AIRCRAFT HANGAR

    high bay lighting; sega-h high bay lights application
