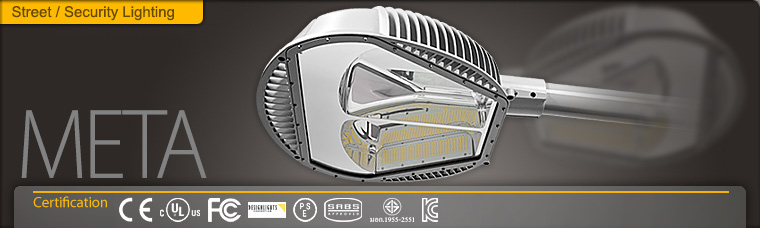

META LED STREET LIGHT

led street light; meta street light

  • Model Name MT100 MT130 MT150 MT180
    Power Consumption 100W 130W 150W 150W
    Luminous Efficacy* 140 lm/w
    Luminous Flux* 14,000 lm 18,200 lm 21,000 lm 25,2000 lm
    Color Temperature 5000K (4000K / 5700K available)
    Color Rendering Index 80 Ra
    Light Distribution Type III-S
    Input Voltage AC 100 - 277V / AC 100 - 240V
    Frequency 50 ~ 60Hz
    Operation Temperature -22°F ~ 140°F / -30°C ~ 60°C
    Size (L x W x H) 19.9 x 18.9 x 6.0 (inch) / 505 x 480 x 152.8 (mm)
    Weight (Driver included) 17.6 lb / 8.0 Kg
    Body Cast Aluminum
    Cover Tempered Glass 4.0T (Clear)
    Finish Powder Coating
    IP Rating / IK Rating IP66 / IK08
    Mounting Option Horizontal Tenon Mount
    Mount Hole Ø2.38 inch Pipe Applied / Ø60.5 mm Pipe Applied
    Control System Wireless (ZigBee) / Sensor (Daylight)
    Warranty 5 Years (12 hours usage per day)
    *Tolerance ±5%
  • led street light; meta street light
    led street light; meta street light
    led street light; meta street light
    led street light; meta street light

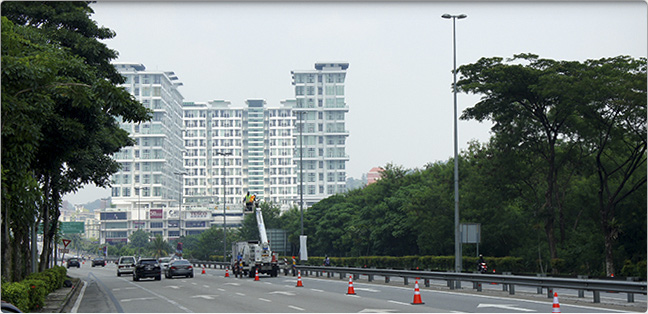

  • March 2014 : NPE Highway - Malaysia(Night)led street light; meta street light

    March 2014 : NPE Highway - Malaysia(Day)led street light; meta street light
