LUNA HIGH BAY LIGHTING

high bay lighting; LUNA high bays; industrial LED lighting

  • luna-1 luna-2
  • Model Name LN070 LN098 LN130 LN160
    Power Consumption 70W 98W 130W 160W
    Luminous Efficacy* 95 lm/w 96 lm/w
    Luminous Flux* 6,650 lm 9,310 lm 12,480 lm 15,360 lm
    Color Temperature 5000K (3000K / 4000K / 6500K available)
    Color Rendering 80 Ra
    Light Distribution 60˚
    Input Voltage AC 100 ~ 240V / AC 100 ~ 277V
    Frequency 50 ~ 60 Hz
    Operation Temperature -22°F ~ 140°F / -30°C ~ 60°C
    Size (D x H) Ø15.9 x 11.4 (inch) / Ø402.9 x 290.2 (mm) Ø18.1 x 11.4 (inch) / Ø460.6 x 290.2 (mm) Ø18.5 x 10.9 (inch) / Ø469.2 x 276.4 (mm) Ø20.9 x 10.9 (inch) / Ø530.8 x 276.4 (mm)
    Weight (Driver included) 12.1 lb / 5.5 Kg 15.4 lb / 7.0 Kg 17.6 lb / 8.0 Kg 23.1 lb / 10.5 Kg
    Body Cast Aluminum
    Optic Silver Coating Reflector
    Cover Tempered Glass 3.0T (Clear)
    Finish Coating Powder Coating
    IP Rating IP65
    Mounting Option Ceiling Bracket (Pipe & Chain)
    Control System Wired (1-10V)
    Warranty 5 Years (12 hours usage per day)
    *Tolerance ±5%
  • high bay lighting; LUNA high bays

    high bay lighting; LUNA high bays

    high bay lighting; LUNA high bays

    high bay lighting; LUNA high bays

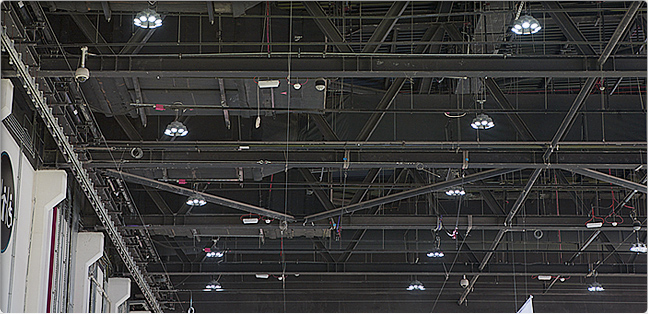

  • JANUARY 2013 - ADNEC (ABU DHABI_UAE)

    high bay lighting; LUNA high bays application

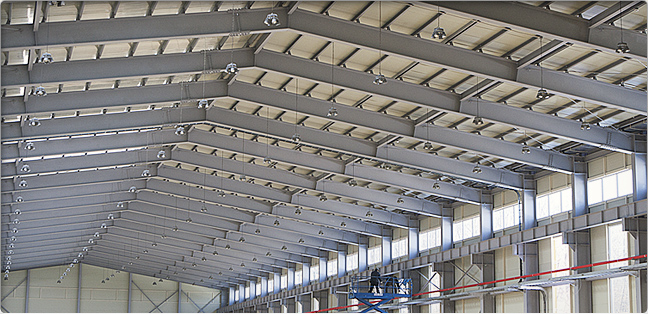

    JUNE 2013 - HANA INDUS - CHEONAN

    high bay lighting; LUNA high bays application
