SUFA-X STADIUM LIGHTS

stadium lights; sufa-x stadium lighting

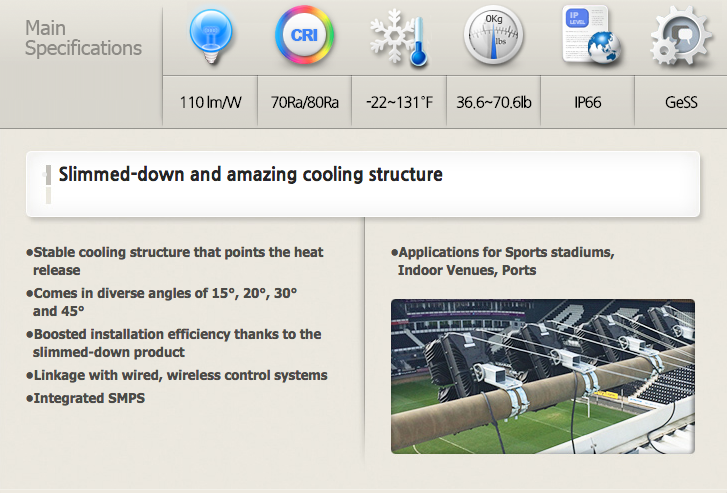

  • SUFA X features

  • Model Name SFX200 SFX400 SFX500 SFX600
    Power Consumption 200W 400W 500W 600W
    Luminous Efficacy* 100 lm/W / 105 lm/W 105 lm/W / 110 lm/W
    Luminous Flux* 8.0 x 15.1 x 10.1 (inch) / 205 x 386 x 214 (mm) 12.7 x 15.5 x 16.2 (inch) / 323 x 393 x 412 (mm)
    Color Temperature 5000K (3000 / 4000K / 5700K available)
    Color Rendering 90 Ra / 80 Ra 80 Ra / 70 Ra
    Size (W x L x H) 8.0 x 15.1 x 10.1 (inch) / 205 x 386 x 214 (mm) 12.7 x 15.5 x 16.2 (inch) / 323 x 393 x 412 (mm)
    Input Voltage AC100 ~ 277V / AC347 ~ 480V AC220 ~ 240V / AC200 ~ 277V / AC347 ~ 480V
    Operating Temperature -22°F ~ 131°F / -30°C ~ 55°C
    Weight (Driver Included) 16.5 lb / 7.5 Kg 36.6 lb / 16.6 Kg
    Body Cast Aluminium
    Cover Tempered Glass 3.2T (clear)
    Optic Silver Coating Reflector
    Finish Coating Powder Coating
    IP Rating IP66
    Mounting Option Swivel Bracket
    Control System Wireless / Wired (RS-485)
    Warranty 5 Years (12 hours usage per day)
    *Tolerance ±5%
    Model Name SFX800 SFX1K0 SFX1K2
    Power Consumption 800W 1000W 1200W
    Luminous Efficacy* 105 lm/W / 110 lm/W
    Luminous Flux* 84,000 lm / 88,000 lm 105,000 lm / 110,000 lm 126,000 lm / 132,000 lm
    Color Temperature 5000K (3000K,4000K, 5700K available)
    Size (W x L x H) 12.7 x 16.8 x 24.9 (inch) / 323 x 426 x 632 (mm)
    Color Rendering 80 Ra/ 70 Ra
    Input Voltage AC200 ~ 277V / AC347 ~ 480V
    Operating Temperature -22°F ~ 131°F / -30°C ~ 55°C
    Weight (Driver Included) 70.6 lb / 32 Kg
    Body Cast Aluminium
    Cover Tempered Glass 3.2T (clear)
    Optic Silver Coating Reflector
    Finish Coating Powder Coating
    IP Rating IP66
    Mounting Option Swivel Bracket
    Control System Wireless / Wired (RS-485)
    Warranty 5 Years (12 hours usage per day)
    *Tolerance ±5%
  • stadium lights; sufa-x stadium lighting



    stadium lights; sufa-x stadium lighting

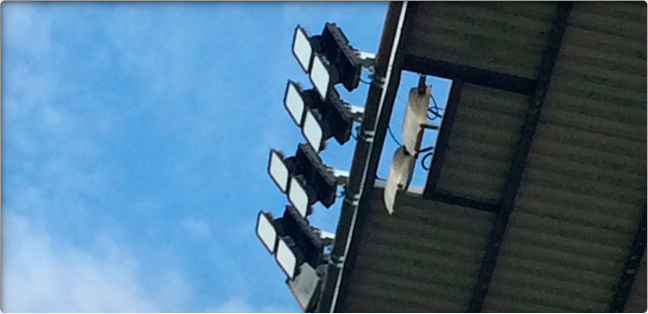

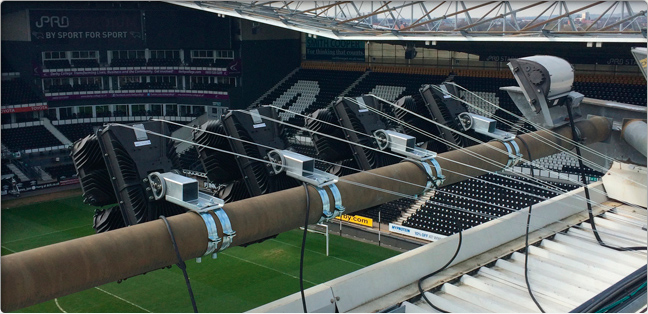

  • RECOMMENDED PLACES: PILOT INSTALLATION, COUNTRY FOOTBALL CLUB

    stadium lights; sufa-x stadium lighting application



    RECOMMENDED PLACES: PILOT INSTALLATION, COUNTRY FOOTBALL CLUB

    stadium lights; sufa-x stadium lighting application
