SAGA H SECURITY LIGHTING

security lighting; security products

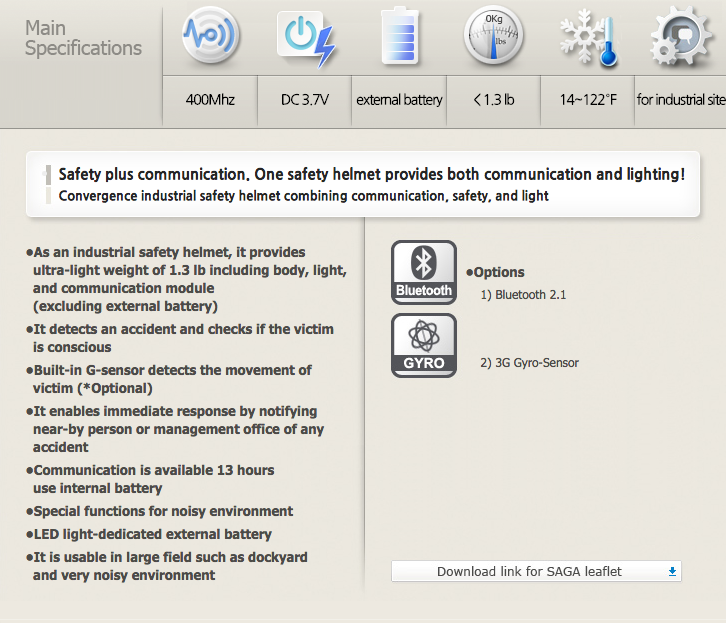

  • SAGA D features



  • HELMET BODY V1.8

    Model Name SAGA H (400MHz) (Industry Helmet)
    Motion Mode F3E
    Channel Interval 12.5Khz
    Movement Mode Half Duplex
    Power Usage DC 3.7V@Typ.
    Antenna Internal type
    Frequency Range (FC Standard) 448.7500 ~ 449.2625MHz (channels 1 ~ 15)
    449.1500 ~ 449.1875Mhz (channels 16 ~ 19)
    449.2125 ~ 449.2625Mhz (beacon channel)
    Republic of Korea Standards
    Operation Temperature 14°F ~ 122°F (-10°C ~ 50°C)
    Dustproof / Waterproof rating IP54 (Dustproof / Waterproof in daily use
    Size (L x W x H) 10.8"(275mm) X 7.7"(195mm) X 9.3"(235mm)
    Class AB (Used for protection against falls/flying and falling objects)
    Weight under 1.3 lb (600g) *Excluding External battery
    Warranty 1 Year (12 hours usage per day)

    TRANSMITTER

    Out Power Max 500mW (Republic of Korea Standards)
    Frequency Deviation ±2.5KHz
    Adjacent Channel Power ≤60dB

    RECEIVER

    Sensitivity (12dB SINAD) 0.35uV
    Spurious Response Rejection >60dB
    Adjacent Channel Selectivity ≥60dB
    CTCSS 50 Tone Code

    ADDITIONAL FUNCTIONS

    Bluetooth Version 3.0 Class II (*IP PTT Only)
    Bluetooth Profile HFP V1.6, HSP V1.2, SPP V1.2 (*IP PTT Only)
    3G Gyro-Sensor Impact Detection
     Beacon Transmission, reception of a distress signal
  • security lighting; security products; saga h

    security lighting; security products; SAGA helmet

    security lighting; security products; saga h

    security lighting; security products; saga h

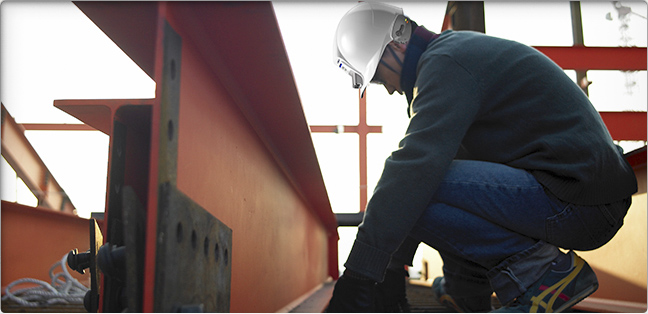

  • RECOMMENDED PLACES - CONSTRUCTION SITE, WORK SITE

    security lighting; security products; saga h

  • BROCHUREPRODUCT BROCHUREUSER GUIDEUSER GUIDE
