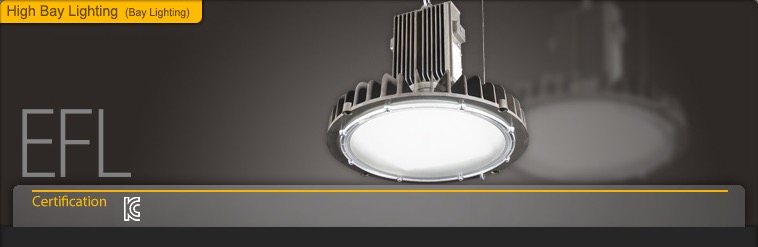

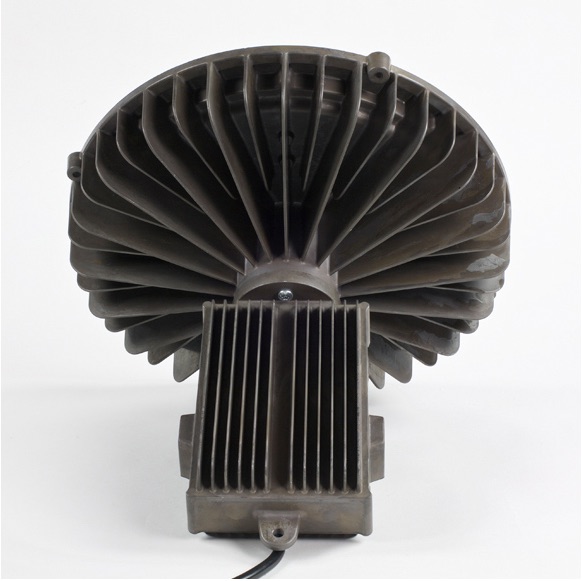

EFL HIGH BAY LIGHTING

high bay lighting; warehouse lighting; industrial LED lighting

  • Model Name EFL070 EFL080 EFL100 EFL130 EFL150
    Power Consumption 70W 80W 100W 130W 150W
    Colour Temperature 5000K (3000K / 4000K / 5700K available)
    Luminous Flux* 10,500 lm 12,000 lm 15,000 lm 19,500 lm 22,500 lm
    Luminous Efficacy* 150 lm/w
    Colour Rendering 80 Ra
    Light Distribution 120° 80° (*Optional - Shade), 120°
    Input Voltage AC100 ~ 240V / AC100 ~ 277V
    Size (D x H) Ø9.6 x 9.8 (inch) / Ø224 x 249 (mm) Ø12.4 x 10.8 (inch) / Ø316 x 273 (mm)
    Weight (Driver included) 8.2 lb / 3.7Kg 10.8 lb / 4.9 Kg

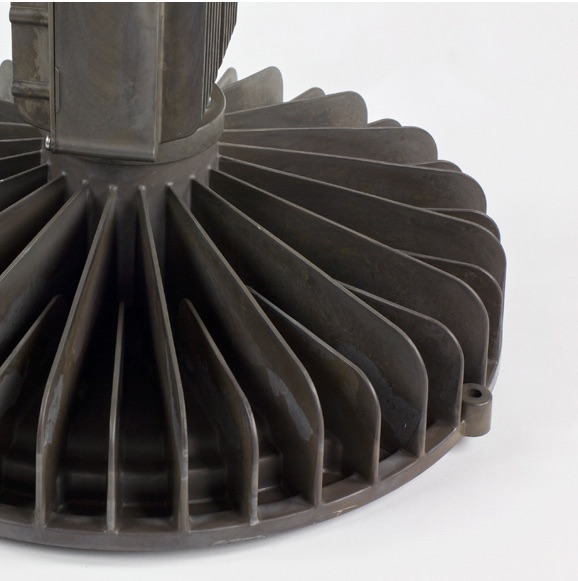

    Body Cast Aluminum

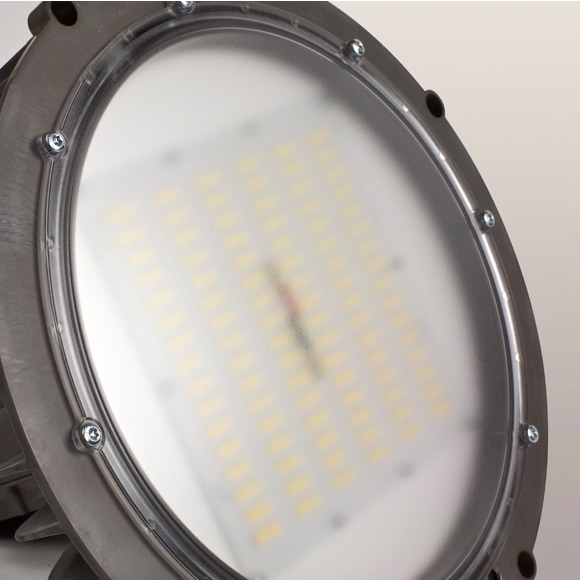

    Cover Polycarbonate 3.0T (Diffuser)
    Finish Anodized
    IP Rating IP65
    Mounting Option Ceiling Bracket (Chain / Pipe)
    Operating Temperature -22°F ~ 140°F / -30°C ~ 60°C
    Warranty 5 Years (12 hours usage per day)
    *Tolerance : ± 5%
  •

    high bay lighting; EFL high bays; warehouse lighting



    high bay lighting; EFL high bays; warehouse lighting





    high bay lighting; EFL high bays; warehouse lighting



    high bay lighting; EFL high bays; warehouse lighting



    high bay lighting; EFL high bays; warehouse lighting

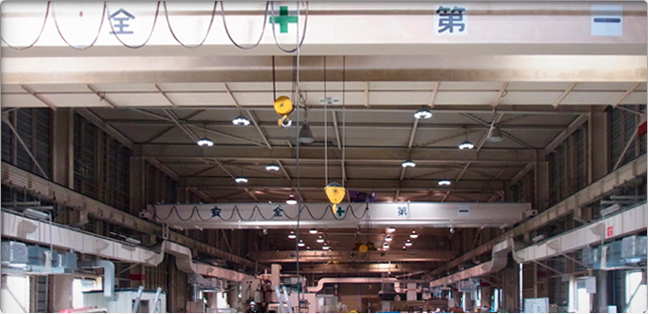

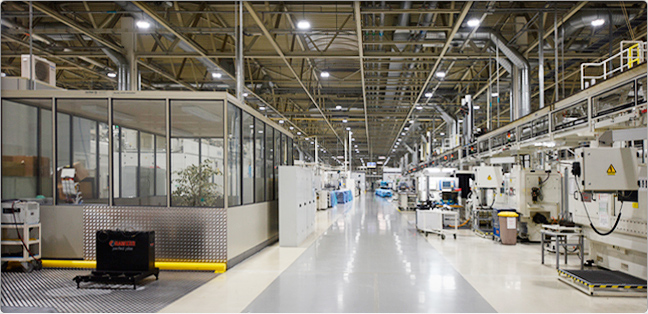

  • FACTORY

    high bay lighting; EFL high bays; warehouse lighting application

    high bay lighting; EFL high bays; warehouse lighting application

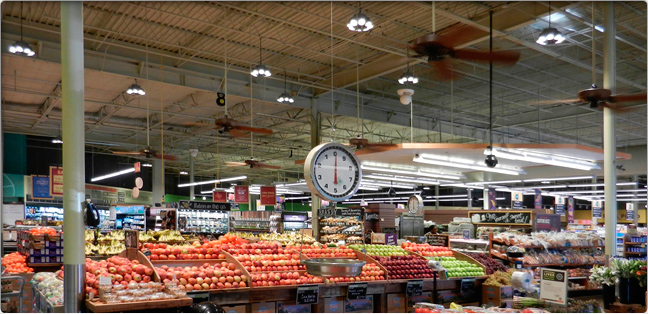

    SUPERSTORE

    high bay lighting; EFL high bays; warehouse lighting application
