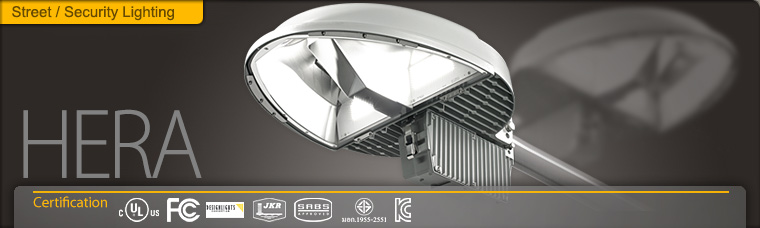

HERA LED STREET LIGHT

led street light

  • fshera01

  • Model Name HR85 HR120 HR150
    Power Consumption 85W 120W 150W
    Luminous Efficacy Min. 100 lm/W Min 98 lm/W Min 100 lm/W
    Luminous Flux Min. 8,500 lm Min 10,500 lm Min 15,000 lm
    Color Temperature 5000K (4000K, 3000K available)
    Color Rendering 80
    Light Distribution Type Type II-S, Type III-S, Type III-M, Type IV-S
    Input Voltage AC90 ~ 277V
    Frequency 50/60Hz (47~63Hz)
    Operation Temperature -86℉ ~ 140℉(-30℃~60℃)
    Size (LxWxT) 22.2"X16.1"X8.7"(564.4mm X 409.8mm X
    Weight < 22.0 lb(10.0Kg)
    Base Cast Aluminum
    Globe Tempered Glass (4T)
    Finish Coating Powder Coating
    IP IP66
    Installation Type Pole To Arm
    Installation Hole Ø2.5 in.(Ø63.5mm) Pipe Applied

    PRODUCT DIMENSIONUntitled-2
