SAGA D SECURITY LIGHTING

security lighting; security products

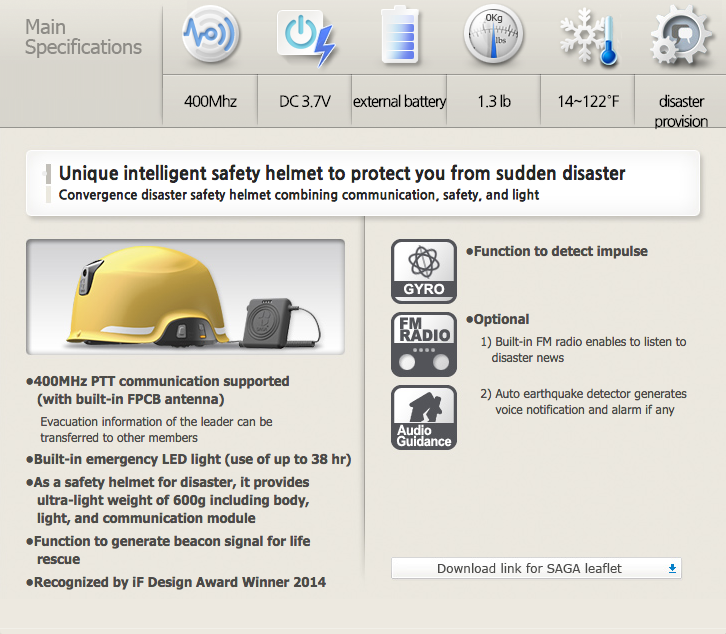

  • SAGA D features

  • HELMET BODY V1.8

    Model Name SAGA D (400MHz)
    Motion Mode F3E
    Memory Channel 20CH (Without Beacon) / 14CH(Beacon 3CH)
    Channel Spacing 12.5Khz
    Mode of Operation Half Duplex
    Antenna Internal type
    Supply Voltage DC 3.7V
    Frequency Range 422.050 ~ 422.300MHz
    Operation Temperature 14 ~ 122°F (-10 ~ 50°C)
    Current Consumption LED – 145mA (Relative Luminous Flux 100%)
    Communication – 110mA (10mW@RF Out Power)
    Size (L x W x H) 10.9″(278mm) X 9.3″(237mm) X 6.5″(165mm)
    Speaker Output Max 0.5W, 8Ω
    Weight 1.3 lb (600g) *Excludes External Battery
    Warranty 1 Years (12 hours usage per day)

    TRANSMITTER

    Out Power 10mW
    Frequency deviation ±2.5KHz
    Adjacent Channel Power ≤60dB

    RECEIVER

    Wireless communication radius Flat ground (LOS) 2km / Urban location 300m / with a building 100m
     Sensitivity (12dB SINAD) 0.25uV
    Spurious Response Rejection >60dB
    Adjacent Channel Power ≥65dB

    OPTIONAL FUNCTION

    FM Radio Worldwide FM band support(76 ~ 108MHz)
    G-Sensor Earthquake Detection [warning alarm sounds for 10 minutes when an earthquake has been detected]
