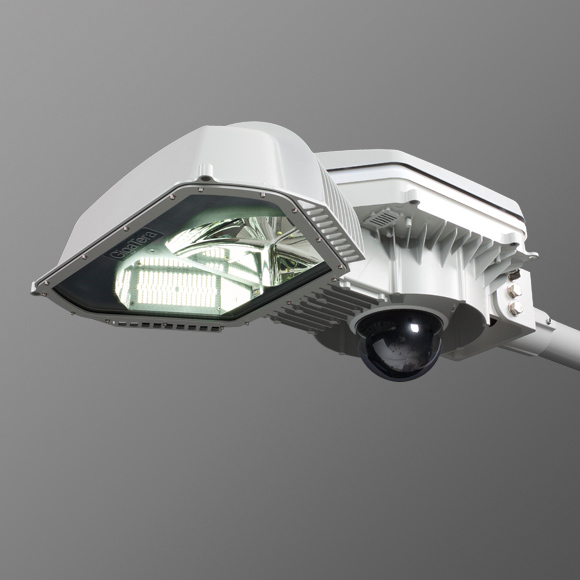

SPES-SETA SECURITY LIGHTING

security lighting; spes-seta

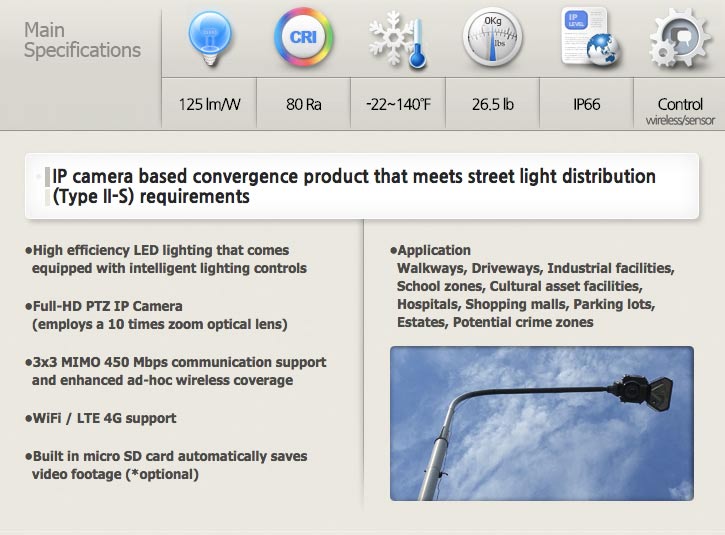

  • IT convergence features

  • LED LIGHTING SPECIFICATION V1.8

    Model Name SPES-ST-WP
    Power Consumption 120W (LED : 100W, AP/CAM : 20W)
    Luminous Efficacy* 125 lm/W
    Luminous Flux* 12,500 lm
    Correlated Color Temperature 5000K
    Color Rendering Index 80 Ra
    Input Voltage AC 100 - 277V
    Frequency 50 ~ 60 Hz
    Frequency>Surge Protection Line-Line 20KV, Line-FG 20KV
    Operation Temperature -22°F ~ 140°F / -30°C ~ 60°C
    Light Distribution Type II-S
    Size (L x W x H) 29.1 x 16.6 x 9.7 (inch) / 740 x 421.5 x 245.5 (mm)
    Weight (Power Box Excluded) 26.5 lb / 12.0 Kg
    Body Cast Aluminum
    Cover Tempered Glass 4.0T (Clear)
    Finish Powder Coating
    IP Rating IP66
    Mounting Option Horizontal Tenon Mount
    Mount Hole Ø2.4 in Pipe Applied / Ø60.5 mm Pipe Applied
    Warranty 5 Years (LED, Driver : 12 hours usage per day) / 1 Year (CAMERA, WiFi)
    *Tolerance ±5%

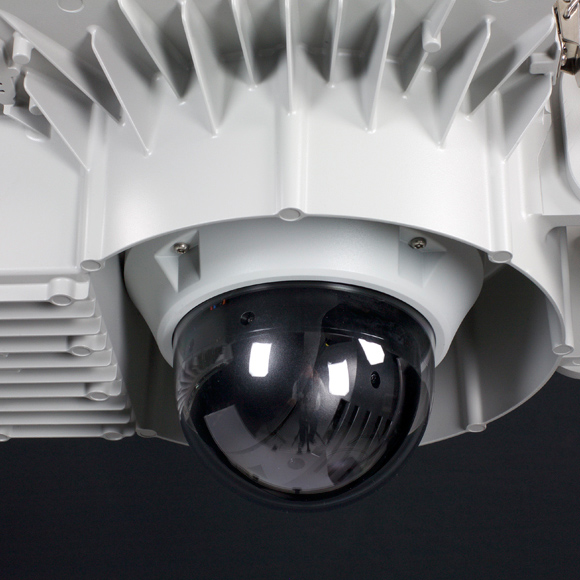

    IP CAMERA SPECIFICATION

    Image Sensor 1/2.8" 2M CMOS
    Max. Resolution 1920 x 1080p
    Lens Optical 10x Mega Pixel Zoom Lens
    Pan / Tilt Range / Speed Pan : 360°(Endless), Tilt : 0° ~ 180° (Digital Flip)
    Preset Speed : 360°/sec, Manual Speed : 100°/sec
    Min. Illumination Color : 0.5 lux, B/W : 0.1 lux
    Image Compression Image Compression : H.264/H.264(Triple streaming), H.264/MJPEG(Triple Stream)
    Image Quality : 6steps(Lowest, Low, Medium, High, Highest, Low compression)
    Focal Length 5.1mm (F1.6) ~ 51mm (F1.8)
    Protocol HTTP, RTP/RTSP(Unicast/Multicast), TCP/IP, ARP, ICMP, telnet, ftp, NTP
    SMTP, DHCP, PPPoE, UPnP
    Web Browser Internet Explorer, safari, VLC, Firefox, Chrome, QuickTime
    CMS(FW-manager, smart NVR, DVM)
    Security Password Protection, HTTPS, IP port filtering for access level
    Digital Image Stabilization Yes
    FOV Horizontal : 54°(Wide) ~ 4.9°(Tele)

    WIFI ACCESS POINT SPECIFICATIONS

    Frequency Range IEEE802.11 a/n
    5.150GHz ~ 5.350GHz, 5.470GHz ~ 5.725GH, 5.725 ~ 5.850GHz (US & Canada)
    5.150GHz ~ 5.350GHz, 5.470GHz ~ 5.725GH, 5.725 ~ 5.875GHz (Europe)
    Receiving Sensitivity -95dBm@MCS0
    Radio Transmission Output 17dBm@5GHz
    Wireless Transmission Standard IEEE 802.11a/n, ad-hoc
    Security / QoS 802.1xAuthenticator(EAP-TLS, EAP-TTLS, PEAP)
    MAC Based wireless connection, 64/128bit WEP, 802.11i
    802.11eWMM / QoS, Cos / maximum 8 virtual SSID
    802.1q VLAN / Wireless VLAN for each SSID / MAC Filtering
    Transmission Speed 3T3R. Maximum 450Mbps @HT40
    LAN / WAN LAN 2-Port (1Gbps), WAN 1-Port (1Gbps)
  • security lighting; security lights; SPES-SETA

    security lighting; security lights; SPES-SETA

    security lighting; security lights; SPES-SETA

    security lighting; security lights; SPES-SETA

    security lighting; security lights; SPES-SETA

    security lighting; security lights; SPES-SETA

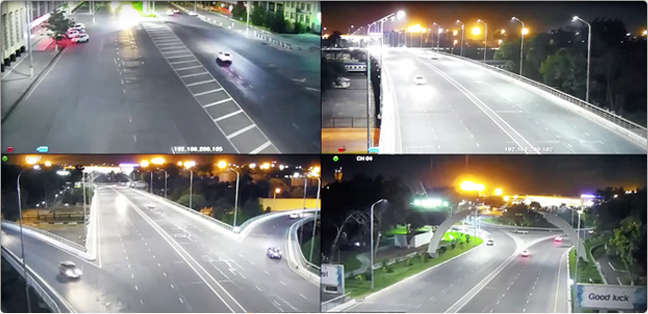

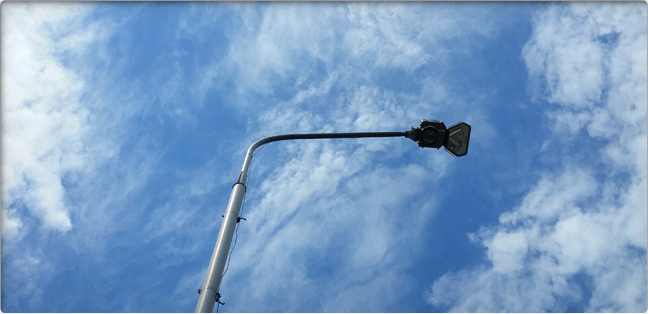

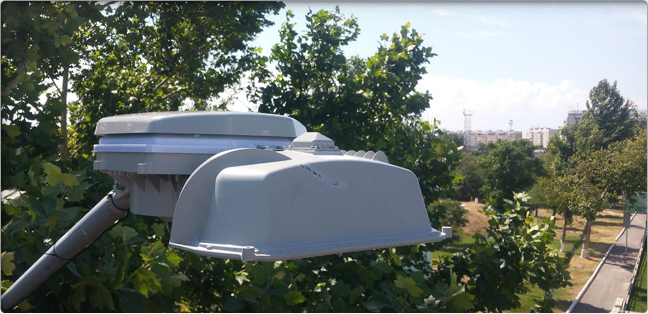

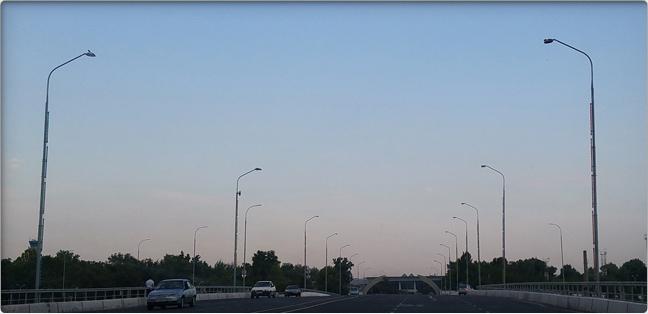

  • RECOMMENDED PLACE - STREET
