SETA LED STREET LIGHT

led street light; SETA-led-streetlights

  • Model Name SETA060 SETA080 SETA100
    Power Consumption 60W 80W 100W
    Luminous Efficacy* 125 lm/W 130 lm/W 130 lm/W
    Luminous Flux* 7,500 lm 10,400 lm 13,000 lm
    Color Temperature 5000K (3000K / 4000K / 5700K available)
    Color Rendering Index 80 Ra
    Light Distribution Type Type II-S
    Input Voltage AC100 ~ 277V
    Frequency 50 ~ 60Hz
    Operation Temperature -22°F ~ 140°F / -30°C ~ 60°C
    Size (L x W x H) 15.7 x 16.3 x 6.2 (inch) / 398 x 415 x 157 (mm)
    Weight (Driver included) 9.9 lb / 4.5 Kg
    Body Cast Aluminum
    Cover Tempered Glass 4.0T (Clear)
    Finish Powder Coating
    IP Rating / IK Rating IP66 / IK08
    Mounting Option Horizontal Tenon Mount
    Mount Hole Ø2.38 inch Pipe Applied / Ø60.5 mm Pipe Applied
    Control System Wireless (ZigBee) / Sensor (Daylight)
    Warranty 5 Years (12 hours usage per day)
    *Tolerance ±5%
  • led street light; SETA-led-streetlights

    led street light; SETA-led-streetlights

    led street light; SETA-led-streetlights

    led street light; SETA-led-streetlights

    led street light; SETA-led-streetlights

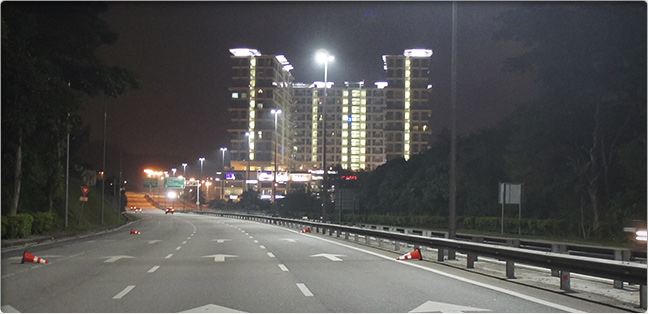

  • March 2014 : NPE Highway - Malaysia(Night)led street light; SETA-led-streetlights
  • CATALOGUEPRODUCT CATALOGUEQUICKTIME VRQUICKTIME VRSPECIFICATIONSPRODUCT SPECIFICATIONSUPDATE / DRIVERIES FILESUSER GUIDEUSER GUIDE
