BELA LED PANEL LIGHT

led panel light

  • BELA panel light

  • Model Name T-Bar : BL220-40
    M-Bar : BL221-40
    T-Bar : BL220-45
    M-Bar : BL221-45
    T-Bar : BL220-50
    M-Bar : BL221-50
    Power Consumption 40W 45W 50W
    Luminous Efficacy* 100 lm/w
    Luminous Flux* 4,000 lm 4,500 lm 5,000 lm
    Color Temperature 5000K (3000K / 3500K / 4000K / 5700K available)
    Color Rendering 80 Ra
    Input Voltage AC100 ~ 240V / AC100 ~ 277V
    Frequency 50 ~ 60Hz
    Size (W x L x H) T-Bar : 23.6 x 23.6 x 3.8 (inch) / 600 x 600 x 96.6 (mm)
    M-Bar : 24.3 x 24.3 x 3.7 (inch) / 616 x 616 x 94.2 (mm)
    Weight (Driver included) 7.9 lb / 3.6 Kg
    Operating Temperature 14°F ~ 122°F / -10°C ~ 50°C
    Body Polycarbonate, ABS
    Cover Polycarbonate (Diffuser)
    IP Rating IP20
    Mounting Option Recessed
    Control System Wired (1-10V,IR) / Wireless (Remote Control)
    Warranty 3 Years (12 hours usage per day)
    *Tolerance ±5%

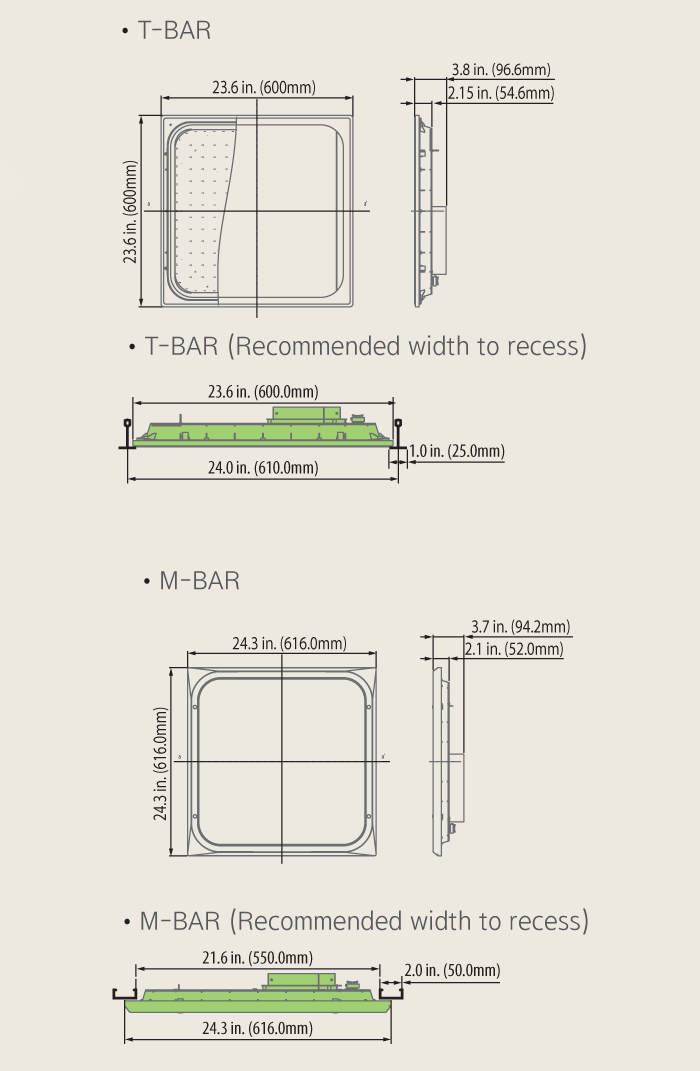

    PRODUCT DIMENSION

    led panel light

  • M BAR TYPE

    led panel light

    led panel light

    led panel light

    T BAR TYPE

    led panel light

    led panel light

    led panel light

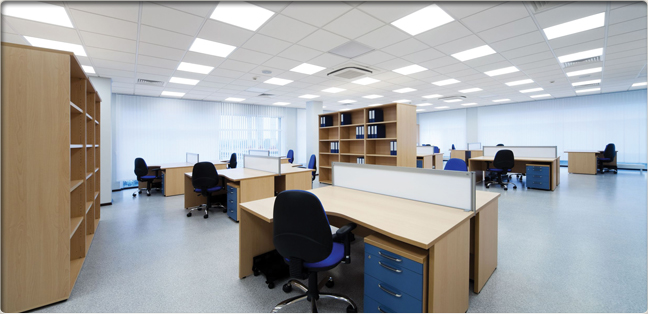

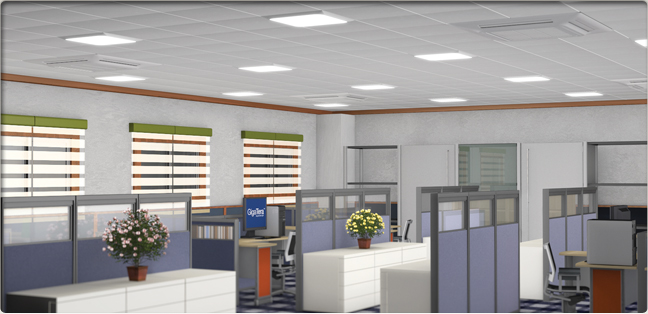

  • OFFICE

    led panel light
    led panel light
