SPES2 SECURITY LIGHTING

  • SPES2_SPECS-01

  • LED LIGHTING SPECIFICATION

    Model Name SPES2-080-E SPES2-080-L
    Power Consumption 100W (LED:80W, AP/CAM:20W) 80W
    Luminous Efficacy* 95 lm/W
    Luminous Flux* 7,600 lm
    Correlated Color Temperature 5000K
    Color Rendering Index 80 Ra
    Input Voltage AC 100 – 240V / AC 100 – 277V
    Frequency 50 / 60 Hz
    Surge Protection Line-Line 2KV, Line-FG 4KV
    Operation Temperature -22°F ~ 140°F / -30°C ~ 60°C
    Light Distribution Adaptive
    Size (L x W x H) 26.6 x 15.9 x 8.4 (inch) / 674.5 x 403.5 x 212.5 (mm)
    Weight (Driver Included) 29.0 lb / 13.0 Kg 22.1 lb / 10.0 Kg
    Body Cast Aluminum
    Optic Silver Coating Reflector
    Cover Tempered Glass 3.2T (Clear)
    Finish Powder Coating
    IP Rating IP65
    Mounting Option Horizontal Tenon Mount
    Mounting Hole Ø2.4 in Pipe Applied / Ø60.5 mm Pipe Applied
    Control System Sensor (Motion / daylight) –
    Warranty 5 Years (LED, Driver : 12 hours usage per day) / 2 Years (CAMERA, WiFi)
    *Tolerance ±5%

    IP CAMERA SPECIFICATION SPES2-080-E

    Image Sensor 1/2.8″ Sony CMOS Sensor
    Maximum Resolution 1920 x 1080p
    Lens Optical 5x Mega Pixel Zoom Lens
    PTR Pan: ±30° / Tilt: -10° ~ ±50° / Rotation: ±45°
    FOV Vertical : Wide 37.4° / Tele 7.94°
    Horizontal : Wide 49.2° / Tele 10.52°
    Diagonal : Wide 60.26° / Tele 13.08°
    Min. Illumination Color : 0.7 lux(F1.2, 30 IRE)
    B/W : 0.08 lux(F1.2, Slow Shutter ON, 30 IRE)
    Image Compression H.264 – Main Profile
    MJPEG – Image Quality : 5steps(Lowest, Low, Medium, High, Highest)
    Protocol IPv4/6, HTTP, HTTPS, SMTP, UPnP, DNS
    Dynamic DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP
    Web Browser Internet Explorer 7.0 or Above, Firefox, Chrome, PDA, Smart Phone
    Security Password Protection, HTTPS, IP Addressing Filtering

    WIFI ACCESS POINT SPECIFICATIONS SPES2-080-E

    Frequency Range IEEE802.11b/g/n
    2.412GHz ~ 2.462GHz (US & Canada)
    2.412GHz ~ 2.472GHz (Europe)
    2.412GHz ~ 2.484GHz (Japan)
    IEEE802.11a/n
    5.150 ~ 5.350GHz, 5.470 ~ 5.725GHz, 5.725 ~ 5.850 GHz (US & Canada)
    5.150 ~ 5.350GHz, 5.470 ~ 5.725GHz, 5.725 ~ 5.875GHz (Europe)
    Receiving Sensitivity -95dBm@MCS0
    Radio Transmission Output 18dBm@2.4GHz, 17dBm(5GHz)
    Wireless Transmission Standard IEEE 802.11a/b/g/n, ad-hoc
    Transmission Speed 3T3R. Maximum 450Mbps @HT40
    Security / QoS 802.1xAuthenticator(EAP-TLS, EAP-TTLS, PEAP), MAC Based wireless connection, 64/128bit WEP, 802.11i
    802.11eWMM / QoS, Cos / maximum 8 virtual SSID
    802.1q VLAN / Wireless VLAN for each SSID / MAC Filtering
    Consumption of Electrical power Maximum 9W
    LAN/WAN LAN (10/100Mbps), WAN(1Gbps)
  • [row_fluid] [span3]

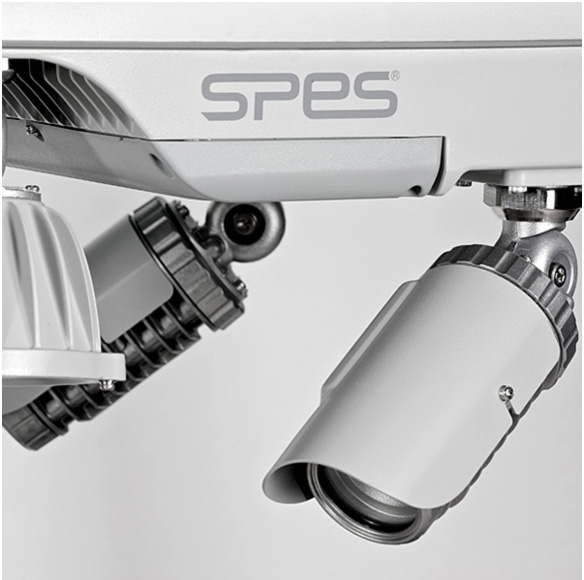

    IP CAMERA

    security lighting; SPES_4-01

    [/span3] [span3]

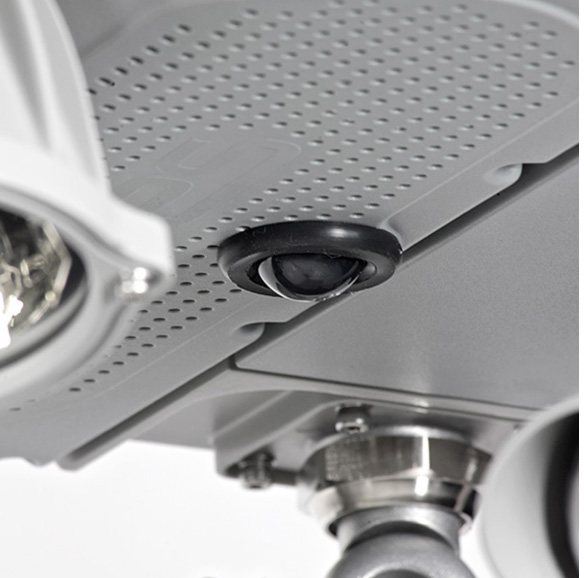

    MOTION SENSOR

    security lighting; SPES2_1-01

    [/span3] [span3]

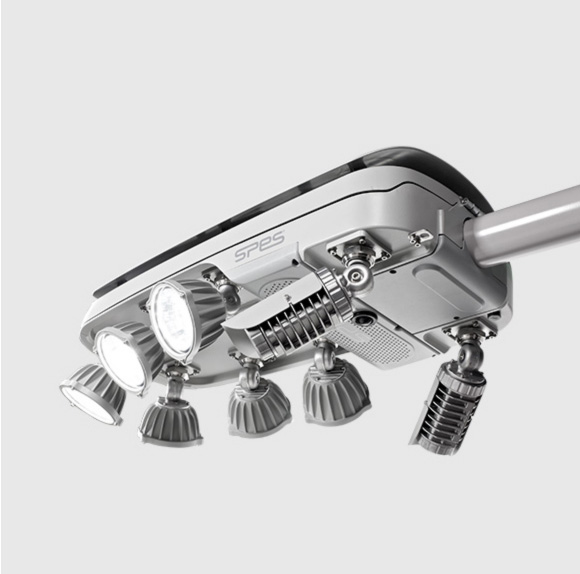

    TILT

    security lighting; SPES-security-lights

    [/span3] [span3]

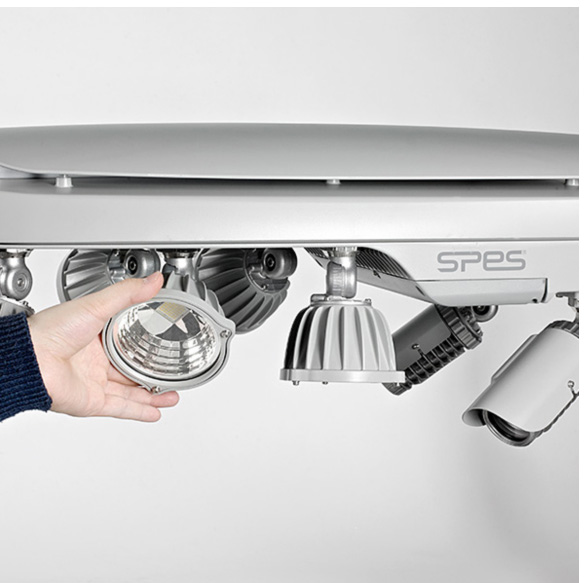

    security lighting; SPES_2-01

    [/span3] [/row_fluid] [row_fluid]

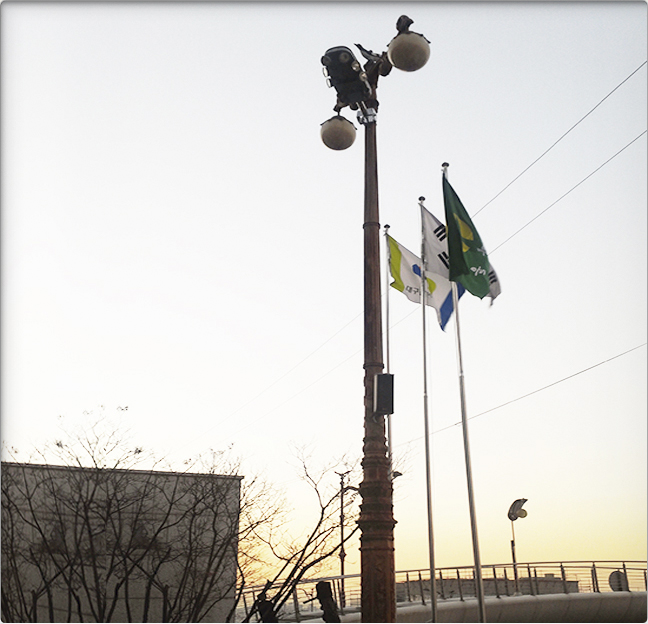

  • DECEMBER 2013: NAMGU CULTURAL CENTER, DAEGU

    security lighting; led-security-lights

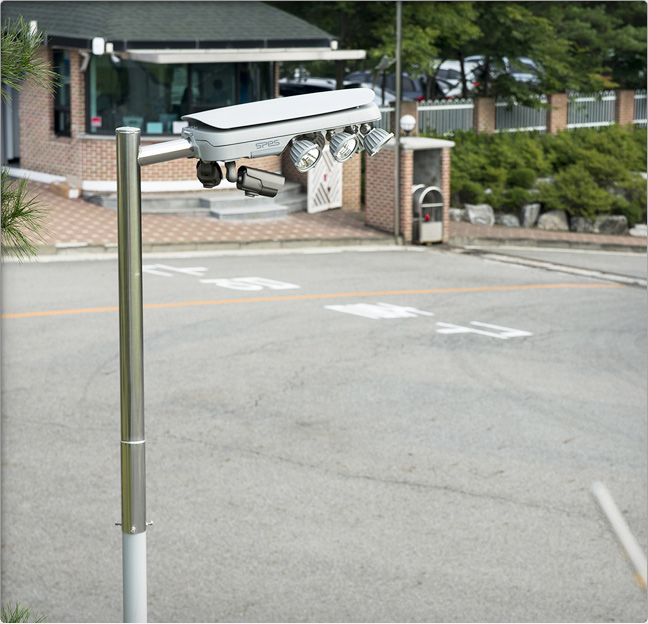

    AUGUSTY 2014: FACTORY, SOUTH KOREA

    security ligting; led-security-lighting

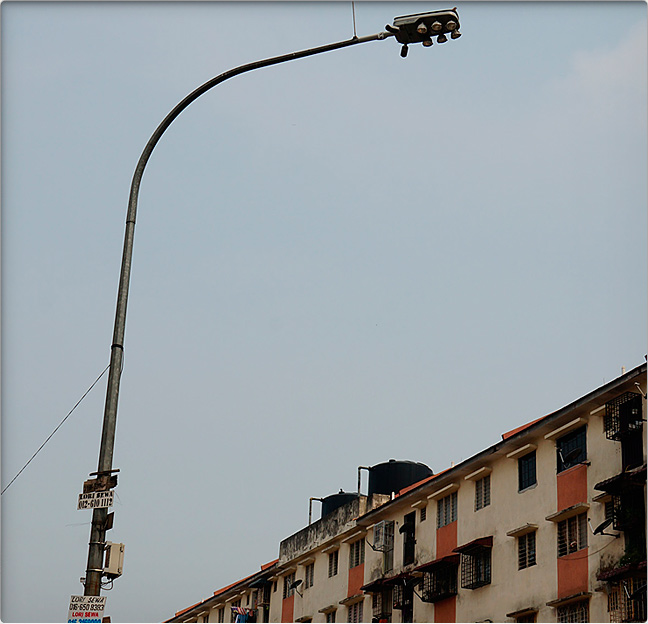

    FEBRUARY 2014: RESIDENTIAL, MALAYSIA

    security lighting; spes2_app3
