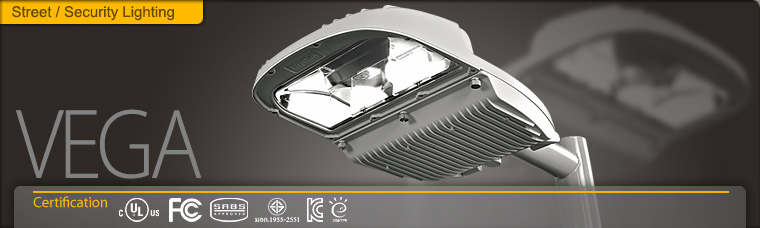

VEGA LED STREET LIGHT

led street light; vega street light

  • svega3svega4

  • Model Name VG050 VG060
    Power Consumption 50W 60W
    Luminous Efficacy 95 lm/W
    Luminous Flux 4,750 lm 5,700 lm
    Color Temperature 5000K (3000K,4000K)
    Color Rendering 80 Ra
    Light Distribution Type Type II-S, Type III-S
    Life time 50,000hrs
    Input Voltage 100 ~ 277VAC
    Frequency 50/60Hz (47~63Hz)
    Operation Temperature -22~140°F (-30 ~ 60°C)
    Size (LxWxT) 19.7"X13.4"X6.7" (501.0mmX340.0mmX169.5mm)
    Weight 15.0lb (6.8Kg)
    Body Cast Aluminum
    Optic Silver Coating Reflector
    Cover Tempered glass 4.0T (Clear)
    Finish Coating Powder Coating
    IP Rating IP66
    Mounting Option Horizontal Tenon Mount
    Installation Hole Ø2.4in(Ø62.0mm) Pipe Applied
    Control System Sensor(Daylight)
  • led street light; vega street light

    led street light; vega street light

    led street light; vega street light

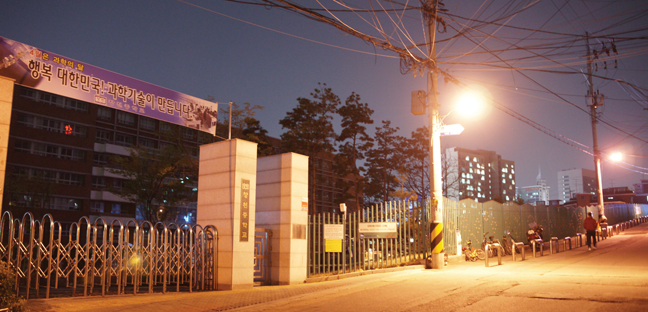

  • Recommended places : Residential area

    led street light; vega street light

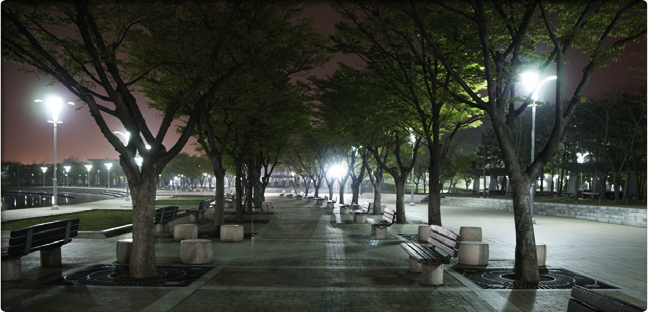

    Recommended places : Park

    led street light; vega street light
