BIFA Billboard Lighting

billboard lighting

  • Model Name BIF050 BIF100
    Power Consumption 50W 100W
    Luminous Efficacy* 105 lm/w
    Luminous Flux* 5,250 lm 10,500 lm
    Color Temperature 5000K (3000K / 4000K available)
    Color Rendering 70 Ra
    Size (W x L x H) 6.2 x 7.3 x 8.9 (inch) / 157 x 185.5 x 226.5 (mm) 9.7 x 7.8 x 9.7 (inch) / 247 x 198.5 x 247 (mm)
    Input Voltage AC100 ~ 240V / AC100 ~ 277V
    Operating Temperature -22°F ~ 122°F / -30°C ~ 50°C
    Weight (Driver Included) 4.9 lb / 2.2 Kg 7.7 lb / 3.5 Kg
    Body Cast Aluminium
    Cover Polycarbonate 3.0T (Clear)
    Optic Silver Coating Reflector
    Finish Coating Powder Coating
    IP Rating IP66
    Mounting Option Swivel Bracket
    Warranty 5 Years (12 hours usage per day)
    *Tolerance ±5%
  • billboard lighting



    billboard lighting

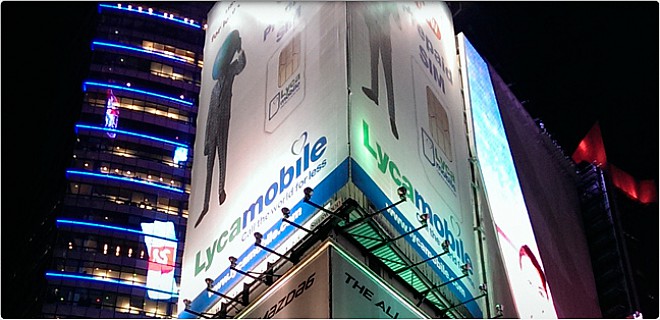

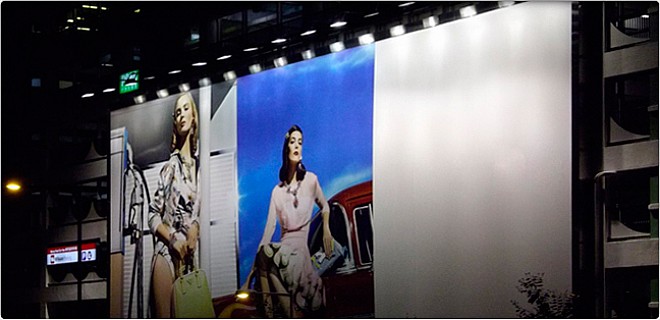

  • RECOMMENDED PLACES: BILLBOARDS

    billboard lighting application

    RECOMMENDED PLACES: WALL PACKS

    billboard lighting application
