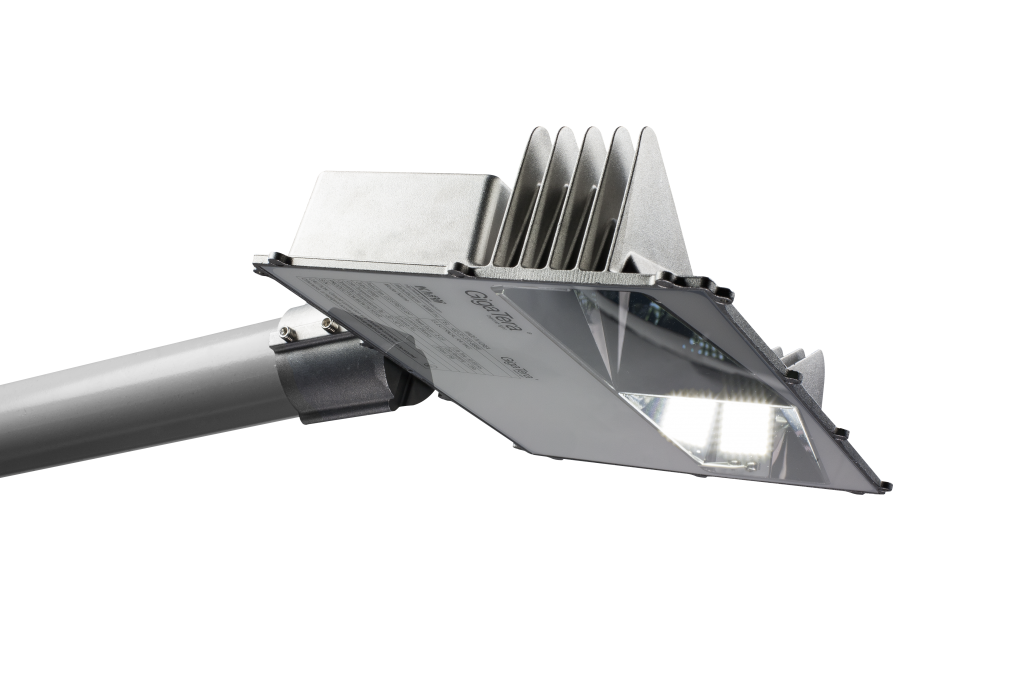

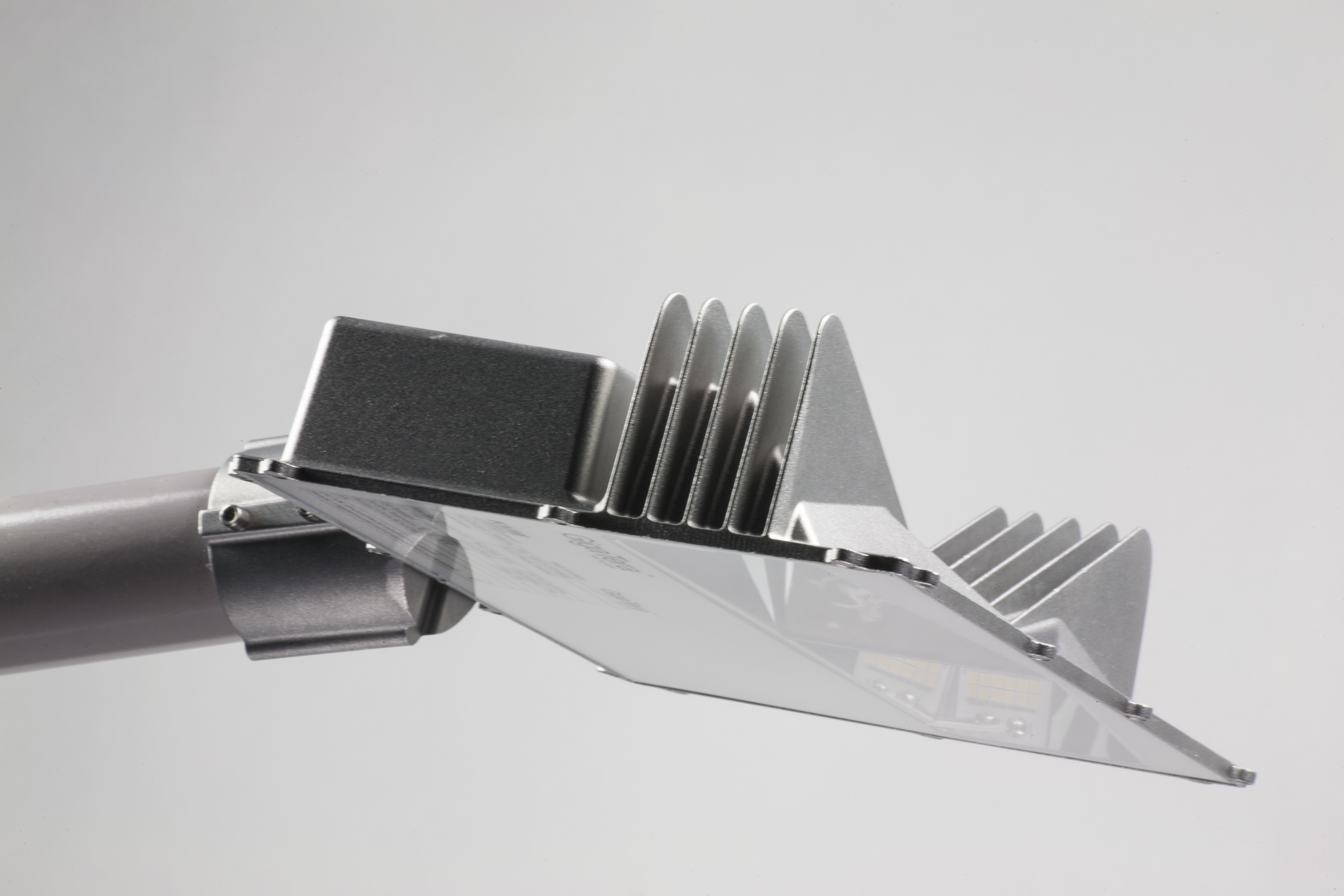

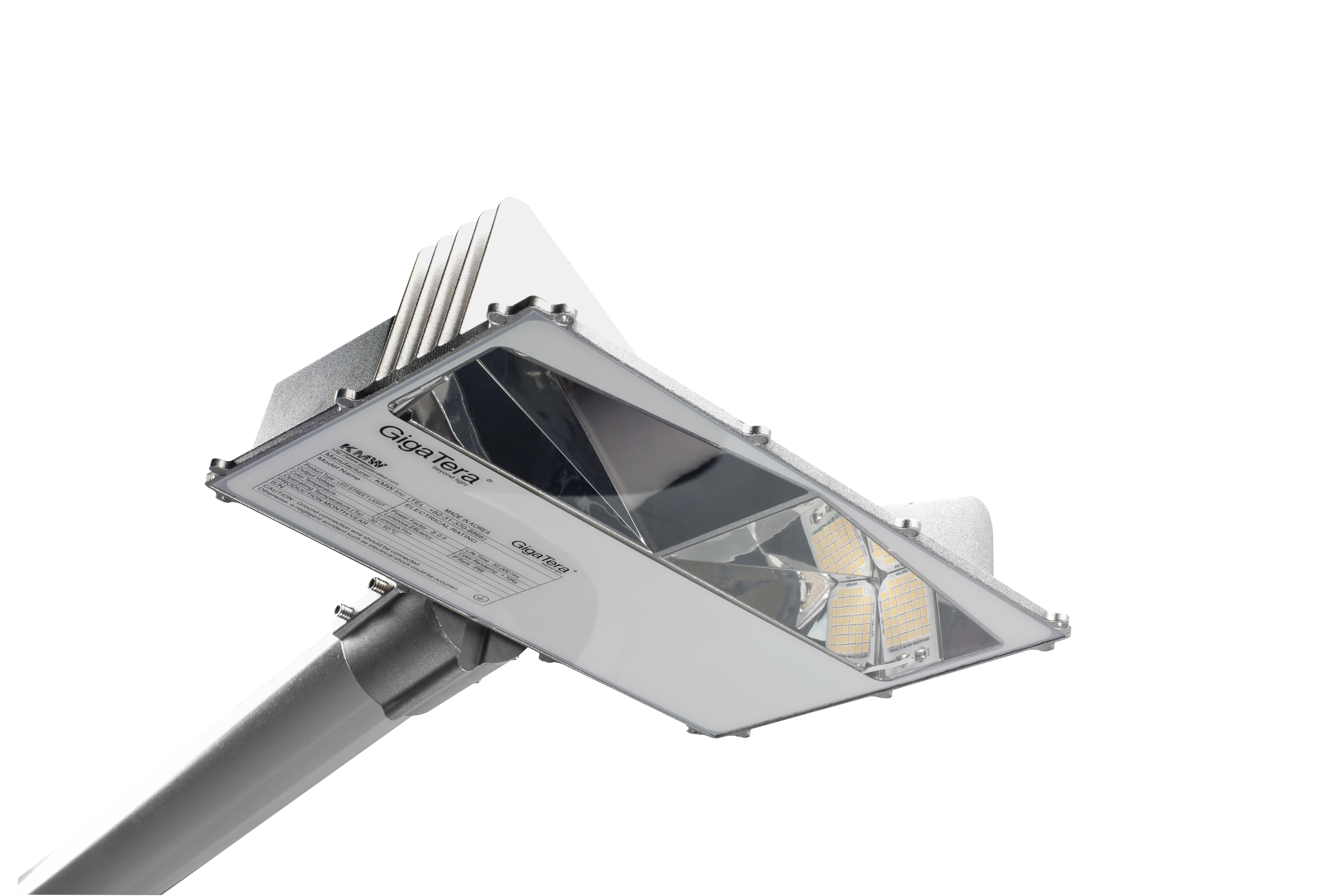

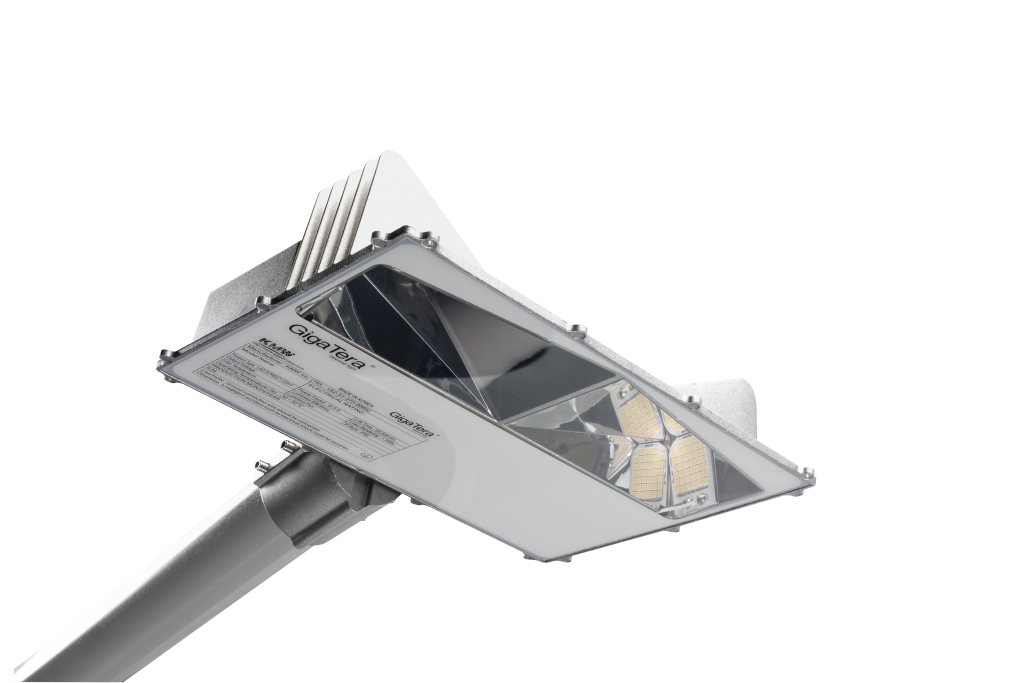

MINI LED Street Light

  • Model Name MIN020 MIN030 MIL030 MIN040 MIL040 MIN050 MIL050
    Power Consumption 20W 30W 30W 40W 40W 50W 50W
    Luminous Efficacy* 100 lm/W 100 lm/W 100 lm/W 100 lm/W 100 lm/W 105 lm/W 105 lm/W
    Luminous Flux* 2,000 lm 3,000 lm 3,000 lm 4,000 lm 4,000 lm 5,250 lm 5,250 lm
    Color Temperature 5000K (3000K, 4000K, 5700 available)
    Color Rendering 80 Ra
    Light Distribution Type Type II-S
    Input Voltage 200 ~ 240 Vac
    Operation Temperature -30℃ ~ 60℃
    Weight 1.2 kg / 2.6 lb 1.8 kg / 4.0 lb

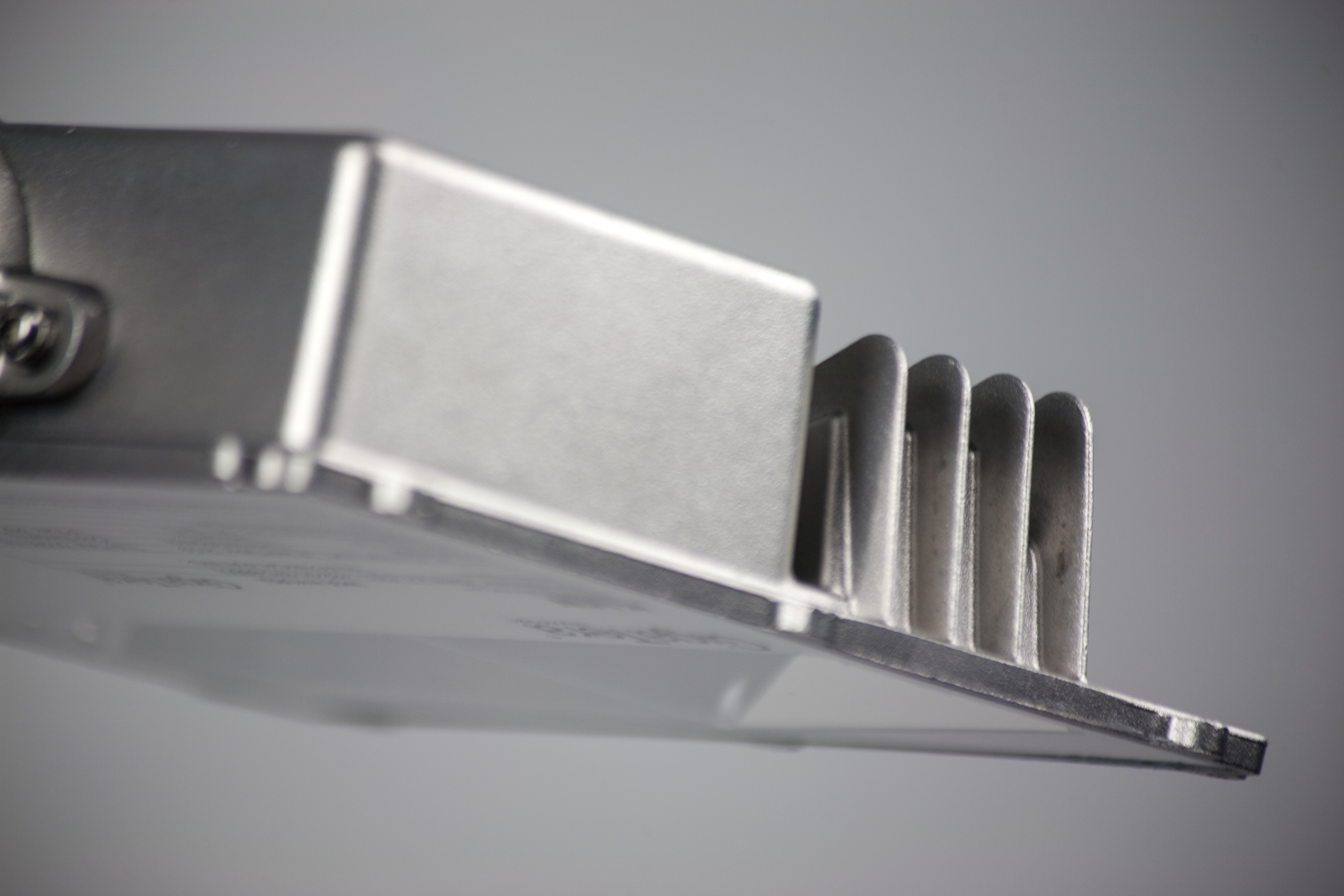

    Body Cast Aluminum
    Finish Slot blast
    Cover Polycarbonate 4T (Clear)
    IP IP66

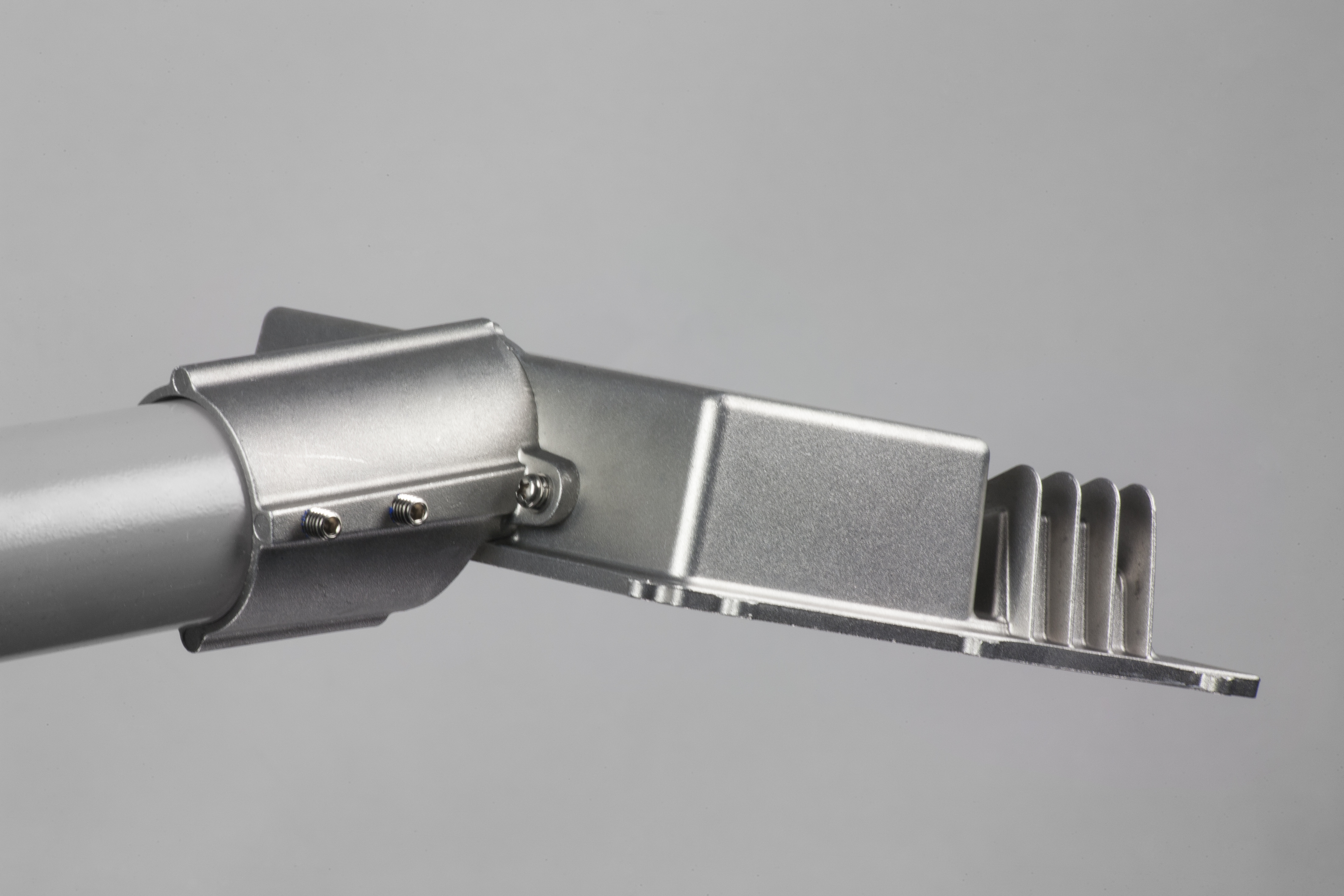

    Mounting Option 15º Pole Mount / Tilting Mount Bracket
    Mount Hole ∅1.57 in.( ∅45mm) / ∅2.38 in.( ∅65mm)
    *Tolerance: ± 5%

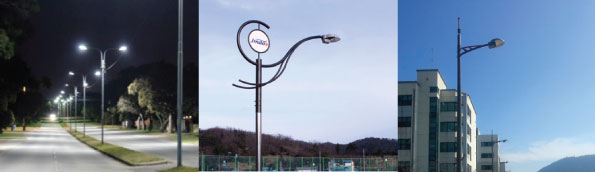

  • led street light
