SUFA STADIUM LIGHTS

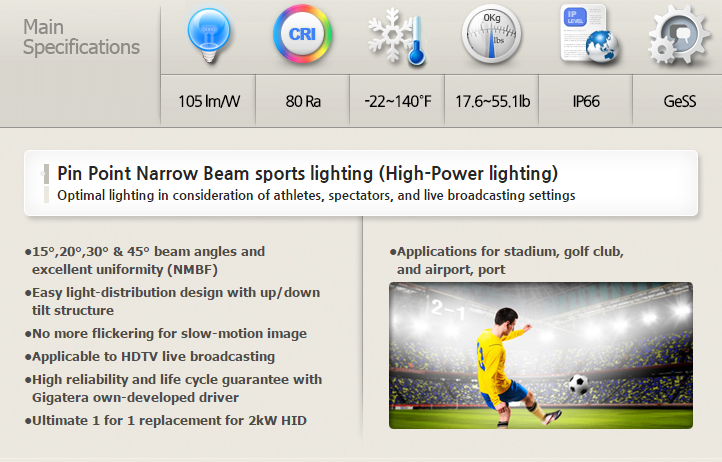

  • Model Name SF200 SF400 SF800
    Power Consumption 200W 400W 800W
    Luminous Efficacy* 105 lm/w
    Luminous Flux* 21,000 lm 42,000 lm 84,000 lm
    Color Temperature 5000K (3000K / 4000K available)
    Color Rendering 80 Ra
    Input Voltage AC100 ~ 240V / AC100 ~ 277V / AC347 ~ 480V
    Frequency 50 ~ 60Hz
    Operating Temperature -22°F ~ 140°F / -30°C ~ 60°C -22°F ~ 131°F / -30°C ~ 55°C -22°F ~ 122°F / -30°C ~ 50°C
    Size (W x L x H) 12.6 x 17.4 x 8.4(inch) / 320 x 443.5 x 213.3 (mm) 12.6 x 25.2 x 11.5 (inch) / 320 x 640 x 292 (mm) 25.2 x 25.2 x 11.5 (inch) / 640 x 640 x 292 (mm)
    Weight (Driver Included) 17.6 lb / 8 Kg 31.9 lb / 14.5 Kg 55.1 lb / 25 Kg
    Body Cast Aluminum
    Cover Tempered Glass 3.2T (Clear)
    Optic Silver Coating Reflector
    Finish Powder Coating
    IP Rating IP66
    Mounting Option Pole Mount Mount Bracket
    Control System Wireless / Wired (RS-485)
    Warranty 5 Years (12 hours usage per day)
    *Tolerance ±5%
  • [row_fluid]

    stadium lights; sufa stadium lights

    stadium lights; sufa stadium lights

    stadium lights; sufa stadium lights

    [/row_fluid] [row_fluid]

    stadium lights; sufa stadium lights

    stadium lights; sufa stadium lights

    [/row_fluid] [/one_third] [/row_fluid]

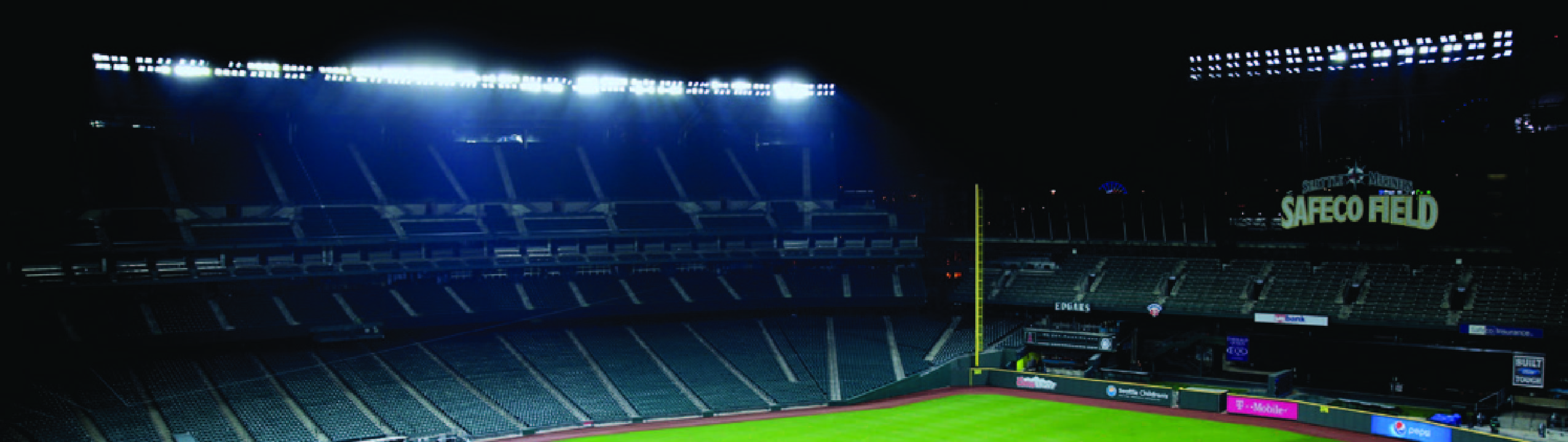

  • RECOMMENDED PLACES: STADIUM

    stadium lights; sufa stadium lights application

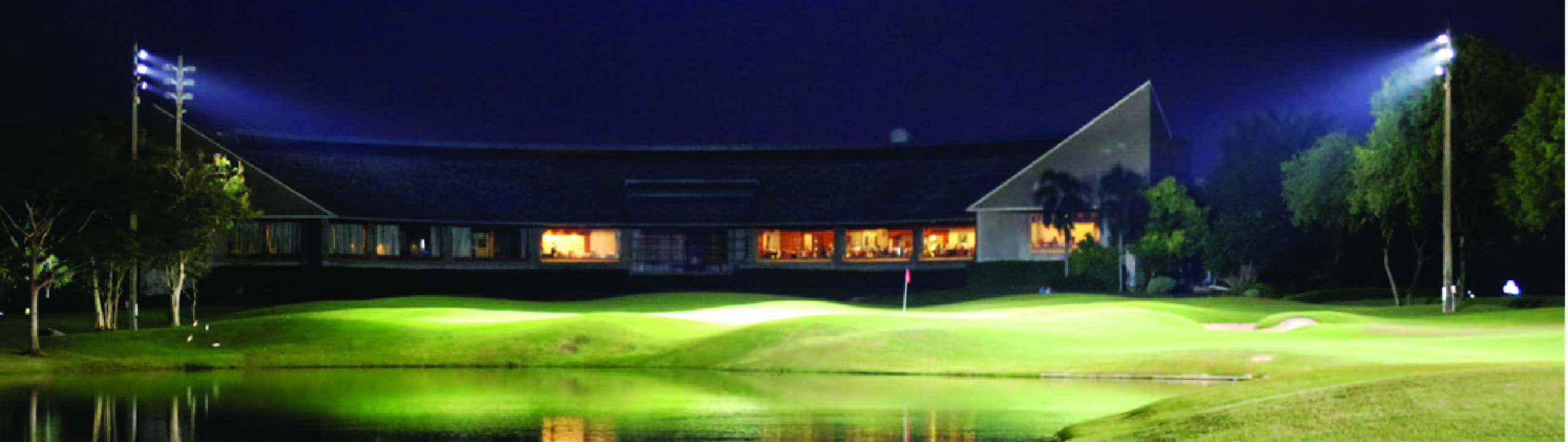

    RECOMMENDED PLACES: GOLF COURSE

    stadium lights; sufa stadium lights application
