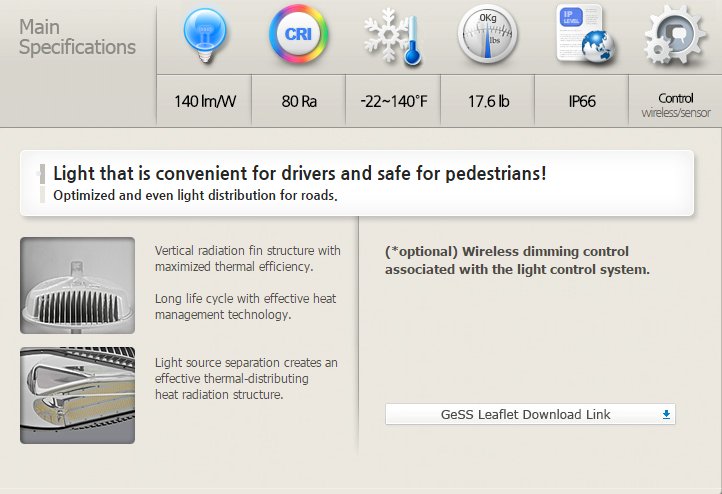

Model Name MT100 MT130 MT150 MT180 Power Consumption 100W 130W 150W 150W Luminous Efficacy* 140 lm/w Luminous Flux* 14,000 lm 18,200 lm 21,000 lm 25,2000 lm Color Temperature 5000K (4000K / 5700K available) Color Rendering Index 80 Ra Light Distribution Type III-S Input Voltage AC 100 – 277V / AC 100 – 240V Frequency 50 ~ 60Hz Operation Temperature -22°F ~ 140°F / -30°C ~ 60°C Size (L x W x H) 19.9 x 18.9 x 6.0 (inch) / 505 x 480 x 152.8 (mm) Weight (Driver included) 17.6 lb / 8.0 Kg Body Cast Aluminum Cover Tempered Glass 4.0T (Clear) Finish Powder Coating IP Rating / IK Rating IP66 / IK08 Mounting Option Horizontal Tenon Mount Mount Hole Ø2.38 inch Pipe Applied / Ø60.5 mm Pipe Applied Control System Wireless (ZigBee) / Sensor (Daylight) Warranty 5 Years (12 hours usage per day) *Tolerance ±5% - [row_fluid]
[/row_fluid]

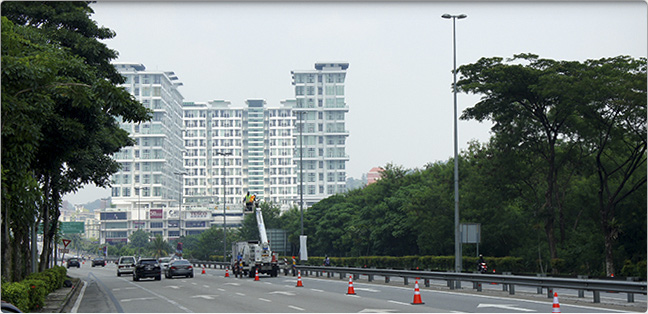

- March 2014 : NPE Highway – Malaysia(Night)
March 2014 : NPE Highway – Malaysia(Day)
